A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using thermal vias to dissipate heat, and keeping the surrounding area clear of other components to allow for good airflow.
To ensure reliable start-up and shutdown, make sure to follow the recommended power-up and power-down sequences, and ensure that the input voltage rises and falls monotonically. Also, add a soft-start circuit to limit the inrush current during start-up.
When selecting the output capacitor, consider the capacitance value, equivalent series resistance (ESR), and voltage rating. A higher capacitance value can reduce output voltage ripple, but may increase the start-up time. A low ESR can reduce energy losses, but may increase the cost.
To optimize the device for low standby power consumption, ensure that the device is in a low-power mode during standby, and that the input voltage is reduced to the minimum required level. Also, consider using a low-power mode controller or a power-good signal to minimize power consumption.
To reduce EMI and noise, use a pi-filter or a common-mode choke at the input, and add a ferrite bead or a noise filter at the output. Also, ensure that the PCB layout is optimized to minimize noise coupling and radiation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP164AMT180TAG Overview

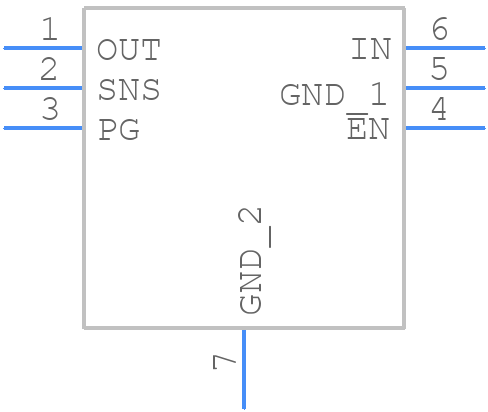

Use the download button to access the NCP164AMT180TAG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP16,
or try a keyword search, such as Linear Regulator ICs
