NCP1653DR2G - onsemi

Description: IEC61000-3-2 Compliant; Continuous Conduction Mode; Average Current-Mode or Peak Current-Mode Operation; Constant Output Voltage or Follower Boost Operation; Very Few External Components; 67 or 100 kHz Fixed Switching Frequency; Soft-Start Capability; VCC Undervoltage Lockout with Hysteresis (8.7 / 13.25 V); Overvoltage Protection (107% of Nominal Output Level); Undervoltage Protection or Shutdown (8% of Nominal Output Level); Programmable Overcurrent Protection; Programmable Overpower Limitation; Thermal S

Download NCP1653DR2G Model

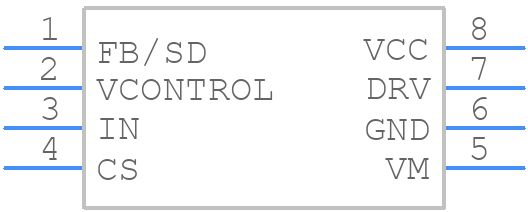

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP1653DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom
3D Models
NCP1653DR2G - onsemi  - 3D model - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom

NCP1653DR2G Details

  • Manufacturer Part Number:

    NCP1653DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC-8 Narrow Body

  • Package Description:

    SOIC-8 Narrow Body-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES IN PEAK CURRENT MODE

  • Analog IC - Other Type:

    POWER FACTOR CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    9.95 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    6 mA

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    110 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3.9 mm

NCP1653DR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCP1653DR2G involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should have a low ESR and be rated for the input voltage. A ceramic capacitor with an X7R or X5R dielectric is recommended. The output capacitor should have a low ESR and be rated for the output voltage. A ceramic capacitor with an X7R or X5R dielectric is recommended. The capacitance value should be chosen based on the desired output ripple voltage and the output current.
  • The maximum ambient temperature range for the NCP1653DR2G is -40°C to 125°C. However, the device can operate up to 150°C with derating.
  • To ensure stability, the NCP1653DR2G requires a minimum output capacitance of 10uF. The output capacitor should be placed close to the IC, and the input capacitor should be placed close to the input voltage source. Additionally, the PCB layout should be designed to minimize the loop area and reduce the parasitic inductance.
  • The maximum output current capability of the NCP1653DR2G is 3A. However, the output current should be derated based on the ambient temperature and the input voltage.
