A good PCB layout for the NCP1653PG involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the high-current paths. Additionally, it's recommended to use a shielded inductor and to keep the inductor away from sensitive components.
When choosing an inductor for the NCP1653PG, consider the inductor's saturation current, DC resistance, and core material. A good starting point is to select an inductor with a saturation current rating of at least 1.5 times the maximum output current, and a DC resistance of less than 100 mΩ. Ferrite or iron powder cores are good options.
The NCP1653PG is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the thermal design. In general, it's recommended to keep the junction temperature below 125°C to ensure reliable operation.
The NCP1653PG's voltage feedback loop can be compensated using a type II compensator, which involves adding a zero and a pole to the feedback loop. The specific compensation values depend on the output voltage, switching frequency, and other application-specific parameters.
The recommended input capacitor type for the NCP1653PG is a low-ESR ceramic capacitor, such as an X5R or X7R dielectric capacitor. These capacitors have low equivalent series resistance (ESR) and are suitable for high-frequency switching applications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP1653PG Overview

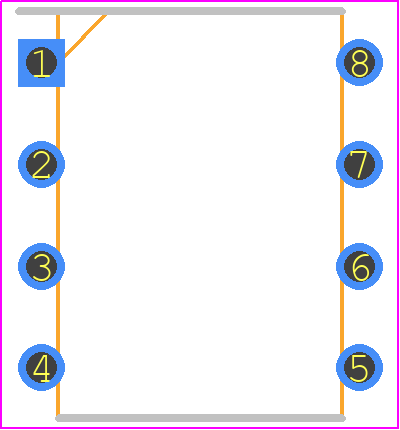

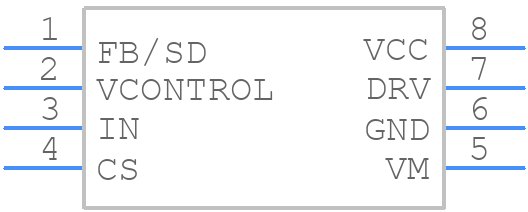

Use the download button to access the NCP1653PG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP16,
or try a keyword search, such as Switching Regulator or Controllers
