NCP1937A2DR2G footprint, schematic symbol and 3D model by onsemi

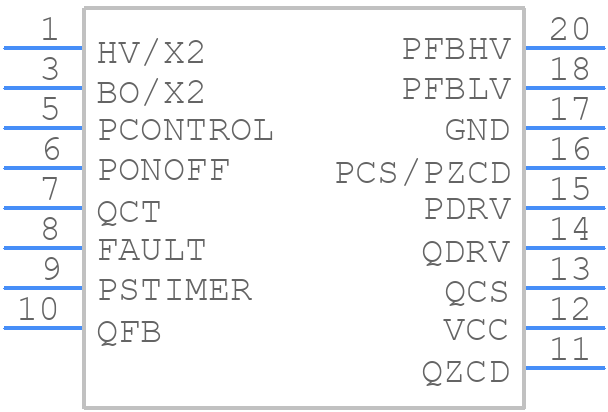

Symbol

click to zoom

PCB Footprints

NCP1937A2DR2G - onsemi PCB footprint - Other - Other - NCP1937A2DR2G-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for NCP1937A2DR2G
Part Number NCP1937A2DR2G
Manufacturer onsemi
Pin Count 17
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - NCP1937A2DR2G-2
Released Date Sep 8, 2023
Last Modified Date Jan 22, 2025 4:53 PM UTC
Pinout / Pin List Click Here (Member Only)

NCP1937A2DR2G Details

Manufacturer Part Number:
NCP1937A2DR2G
Brand Name:
onsemi
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
SOIC20 NB LESS PINS 2, 4 & 19
Package Description:
SOIC20 NB LESS PINS 2, 4 & 19-17
Pin Count:
17
Manufacturer Package Code:
751BS
Country Of Origin:
Philippines
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
24 Weeks
Manufacturer:
onsemi
Analog IC - Other Type:
POWER FACTOR CONTROLLER
Control Mode:
CURRENT-MODE
Control Technique:
RESONANT CONTROL
Input Voltage-Max:
30 V
Input Voltage-Min:
9 V
Input Voltage-Nom:
12 V
JESD-30 Code:
R-PDSO-G17
JESD-609 Code:
e3
Length:
9.9 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
17
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
LSSOP
Package Equivalence Code:
SOP17/20,.25,40
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.7 mm
Supply Current-Max (Isup):
5.2 mA
Surface Mount:
YES
Switcher Configuration:
BUCK-BOOST
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
MATTE TIN
Terminal Form:
GULL WING
Terminal Pitch:
1 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3.9 mm
