Description:1.0 W to an 8.0 Ω Load from a 5.0 V Power Supply; Excellent PSRR: Direct Connection to the Battery; Pop and Click Noise Protection Circuit; Ultra Low Current Shutdown Mode; 2.2 - 5.5 V Operation; External Gain Configuration Capability; External Turn-on and Turn-off Time Configuration Capability; Up to 1.0 nF Capacitive Load Driving Capability; Thermal Overload Protection Circuitry
A good PCB layout for the NCP2890DMR2G involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces to reduce EMI. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
The input capacitor should be a low-ESR ceramic capacitor with a value between 1uF to 10uF, while the output capacitor should be a low-ESR ceramic or electrolytic capacitor with a value between 10uF to 22uF. The capacitor values and types may vary depending on the specific application and output voltage requirements.
The NCP2890DMR2G has an operating ambient temperature range of -40°C to +125°C, but the maximum junction temperature is 150°C. It's essential to ensure proper thermal management to prevent overheating and ensure reliable operation.
To ensure stability, it's crucial to follow the recommended PCB layout, use the correct input and output capacitors, and ensure the feedback loop is properly compensated. Additionally, the output voltage should be set within the recommended range, and the input voltage should be within the specified operating range.
The NCP2890DMR2G has a maximum output current capability of 2A, but this can be limited by the thermal performance of the PCB and the ambient temperature. It's essential to ensure proper thermal management and heat sinking to prevent overheating and ensure reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP2890DMR2G Overview

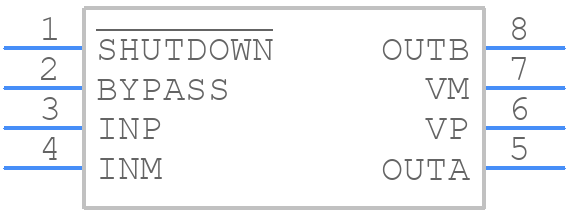

Use the download button to access the NCP2890DMR2G schematic symbol, PCB footprint, and 3D model.
