NCP3063BDR2G - onsemi

Description: Operation up to 40 V Input; Frequency operation up to 150 KHz; Internal thermal Shutdown with hysteresis; Cycle-by-Cycle Current Limiting; Excel Based Design Tool

Download NCP3063BDR2G Model

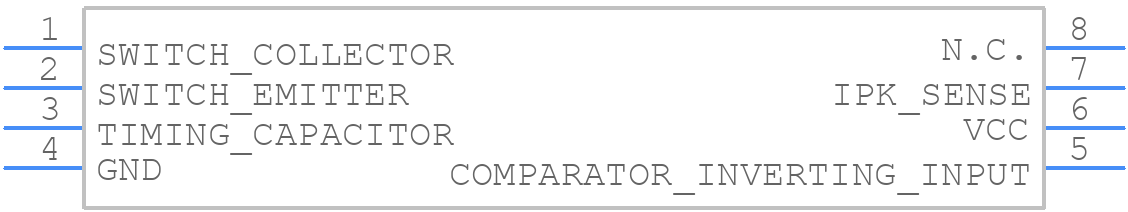

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP3063BDR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin SOIC
click to zoom
3D Models
NCP3063BDR2G - onsemi  - 3D model - Small Outline Packages - 8-Pin SOIC
click to zoom

NCP3063BDR2G Details

  • Manufacturer Part Number:

    NCP3063BDR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 Narrow Body

  • Package Description:

    SOIC-8 Narrow Body-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    6.6

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    HYSTERETIC CURRENT MODE

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    7 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    190 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NCP3063BDR2G Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NCP3063BDR2G is -40°C to 150°C.
  • To ensure stability, a minimum output capacitance of 10uF with an ESR of 1Ω or less is recommended. Additionally, the output voltage can be stabilized by adding a 10nF capacitor between the FB pin and GND.
  • The maximum input voltage that the NCP3063BDR2G can handle is 18V. Exceeding this voltage may cause damage to the device.
  • The output voltage of the NCP3063BDR2G can be calculated using the following formula: Vout = 0.8V x (1 + R1/R2), where R1 and R2 are the resistors connected to the FB pin.
  • The EN (Enable) pin is used to enable or disable the device. When the EN pin is pulled high, the device is enabled, and when it is pulled low, the device is disabled.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCP3063BDR2G Overview

Use the download button to access the NCP3063BDR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP30, or try a keyword search, such as Switching Regulator or Controllers
