NCP3063DR2G - onsemi

Description: Operation up to 40 V Input; Frequency operation up to 150 KHz; Internal thermal Shutdown with hysteresis; Cycle-by-Cycle Current Limiting; Excel Based Design Tool

Download NCP3063DR2G Model
Schematic

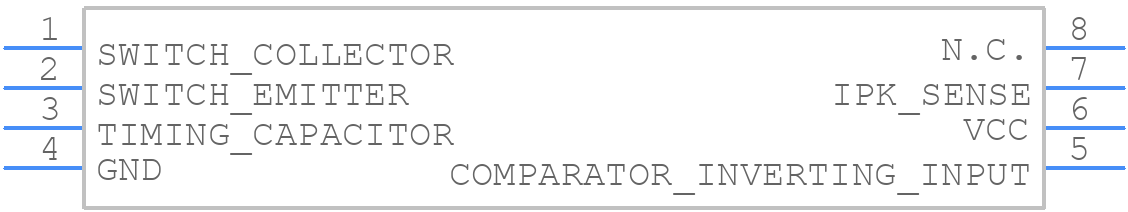

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP3063DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - 8 lead
click to zoom
3D Models
NCP3063DR2G - onsemi  - 3D model - Small Outline Packages - 8 lead
click to zoom

NCP3063DR2G Details

  • Manufacturer Part Number:

    NCP3063DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 Narrow Body

  • Package Description:

    SOIC-8 Narrow Body-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.6

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    HYSTERETIC CURRENT MODE

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    1.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    7 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    190 kHz

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NCP3063DR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCP3063DR2G should include a solid ground plane, wide power traces, and a thermal relief pattern under the IC to facilitate heat dissipation. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stable output voltage regulation, it is essential to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input voltage is within the recommended range, and the output capacitor is of sufficient value and type (e.g., X5R or X7R ceramic capacitor).
  • The NCP3063DR2G is rated for operation up to 85°C ambient temperature. However, for reliable operation, it is recommended to keep the ambient temperature below 70°C to ensure a sufficient margin for thermal derating.
  • While it is possible to use a different inductor value or type, it is not recommended. The recommended inductor value and type are carefully selected to ensure optimal performance and stability. Using a different inductor may affect the regulator's performance, stability, and efficiency.
  • To troubleshoot oscillations or instability issues, check the PCB layout for any signs of resonance or noise coupling. Ensure that the input and output capacitors are of sufficient value and type, and that the inductor is properly selected. Also, verify that the component values and PCB layout conform to the recommended guidelines.
