NCP3334AMTADJTBG - onsemi

Description: Linear Voltage Regulator IC Positive Adjustable 1 Output 500mA 8-WDFN (3x3)

Download NCP3334AMTADJTBG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

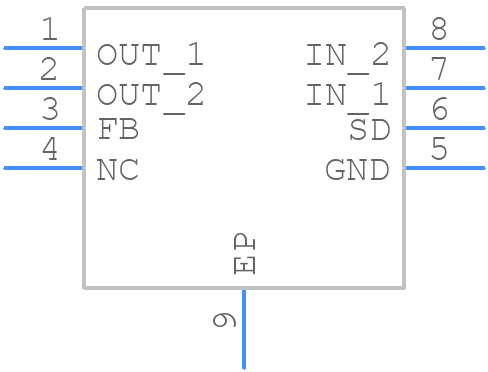

NCP3334AMTADJTBG - onsemi - PCB symbol
click to zoom
PCB Footprints
NCP3334AMTADJTBG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - WDFN8 3x3, 0.5P CASE 511CF ISSUE O
click to zoom
3D Models
NCP3334AMTADJTBG - onsemi - 3D model - Small Outline No-lead - WDFN8 3x3, 0.5P CASE 511CF ISSUE O
click to zoom

NCP3334AMTADJTBG Details

  • Manufacturer Part Number:

    NCP3334AMTADJTBG

  • Brand Name:

    ON Semiconductor

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, 0.50 MM PITCH, LEAD FREE, WDFN-8

  • Manufacturer Package Code:

    511CF

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    7.3

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.34 V

  • Dropout Voltage1-Nom:

    0.01 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max (%/V):

    0.004

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    10 V

  • Output Voltage1-Min:

    1.178 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

NCP3334AMTADJTBG Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using thermal vias to dissipate heat, and keeping the surrounding area clear of other components to allow for good airflow.
  • To ensure stable output voltage, use a suitable input capacitor, adjust the feedback resistors to set the desired output voltage, and consider adding a soft-start circuit to prevent inrush currents during startup.
  • Handle the device in an ESD-protected environment, wear an ESD wrist strap or use an ESD mat, and avoid touching the device's pins or exposed internal components. Use ESD-safe packaging and storage materials.
  • The device is rated for operation up to 150°C, but the maximum junction temperature (TJ) should not exceed 150°C. Ensure proper thermal design and consider derating the output current at high temperatures to prevent overheating.
  • Use an oscilloscope to monitor the output voltage and current, check the input voltage and current, and verify the PCB layout and component values. Consult the datasheet and application notes for troubleshooting guidelines and consider seeking support from onsemi's technical team.
