Description:High Accuracy Over Line and Load (±0.9% at 25°C); Low Dropout Voltage of 340 mV maximum at 500 mA; Low Noise of 38 µVrms; Low Shutdown Current (0.07 µA); Reverse Bias Protected; 2.6 V to 12 V Supply Range; Thermal Shutdown Protection; Current Limitation; Requires only 1.0 uF Output Capacitance for Stability; Stable with any type of capacitor, including MLCC; No Minimum Output Current Required for Stability; This is a Pb Free Device
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. The datasheet provides some guidelines, but a more detailed application note from onsemi provides additional recommendations.
To ensure reliable start-up and shutdown, it's essential to follow the recommended power-up and power-down sequences outlined in the datasheet. Additionally, ensure that the input voltage rises and falls monotonically, and that the input voltage is within the recommended operating range.
Operating the device outside the recommended operating temperature range can lead to reduced performance, decreased efficiency, and potentially even device failure. It's essential to ensure that the device operates within the recommended temperature range to maintain reliability and performance.
To troubleshoot issues with the device, start by verifying that the input voltage and current are within the recommended operating range. Check for any signs of overheating, and ensure that the device is properly soldered and connected. If issues persist, consult the datasheet and application notes for guidance, or contact onsemi support for further assistance.
Using a different inductor or capacitor value than recommended can affect the device's performance, efficiency, and stability. It's essential to follow the recommended component values and layout guidelines to ensure optimal performance and reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP3334DADJR2G Overview

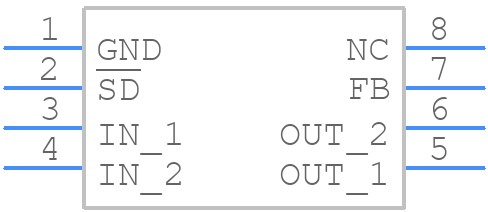

Use the download button to access the NCP3334DADJR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP33,
or try a keyword search, such as Linear Regulator ICs
