NCP3335ADM300R2G - onsemi

Description: High Accuracy Over Line and Load (±0.9% at 25 °C); UltraLow Dropout Voltage at Full Load (260 mV typ.); No Minimum Output Current Required for Stability; Low Noise (31 Vrms w/10 nF Cnr and 51 Vrms w/out Cnr); Low Shutdown Current (0.07 µA); Reverse Bias Protected; 2.6 V to 12 V Supply Range; Thermal Shutdown Protection; Current Limitation; Requires Only 1.0 µF Output capacitance for Stability; Stable with Any Type of Capacitor (including MLCC); Available in 1.5V, 1.8V, 2.5 V, 2.8V, 2.85 V, 3.0V, 3.3 V, 5.0

Download NCP3335ADM300R2G Model

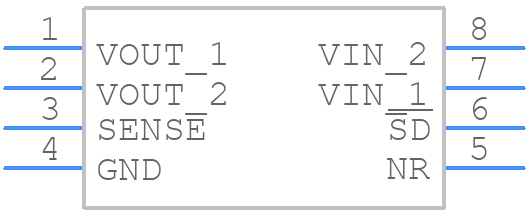

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP3335ADM300R2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - CASE 846A−02-+-
click to zoom
3D Models
NCP3335ADM300R2G - onsemi  - 3D model - Small Outline Packages - CASE 846A−02-+-
click to zoom

NCP3335ADM300R2G Details

  • Manufacturer Part Number:

    NCP3335ADM300R2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    Micro 8 lead Surface Mount

  • Package Description:

    MICRO-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    846A-02

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.4

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.34 V

  • Dropout Voltage2-Max:

    0.34 V

  • Input Voltage Absolute-Max:

    16 V

  • Input Voltage-Max:

    12 V

  • Input Voltage-Min:

    2.6 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Current2-Max:

    0.5 A

  • Output Voltage1-Max:

    3.045 V

  • Output Voltage1-Min:

    2.955 V

  • Output Voltage1-Nom:

    3 V

  • Output Voltage2-Max:

    3.045 V

  • Output Voltage2-Min:

    2.955 V

  • Output Voltage2-Nom:

    3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    1.5%

  • Width:

    3 mm

NCP3335ADM300R2G Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the component side of the PCB clear of copper to minimize thermal resistance.
  • Ensure that the input voltage rises monotonically and does not droop during start-up. A soft-start circuit can be used to limit the inrush current.
  • The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage may damage the device.
  • Yes, but the device's power rating must be derated according to the temperature derating curve in the datasheet. Ensure proper thermal management and consider using a heat sink if necessary.
  • Check the PCB layout for noise coupling, ensure proper decoupling capacitors are used, and verify that the output capacitor is within the recommended range. Also, check for any voltage regulator module (VRM) instability.
