The recommended PCB layout for optimal thermal performance involves placing the device on a 2-layer or 4-layer board with a solid ground plane on the bottom layer, and using thermal vias to connect the exposed pad to the ground plane. Additionally, keeping the copper traces wide and short can help to reduce thermal resistance.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines, use a suitable thermal interface material (TIM) between the device and the heat sink, and ensure good airflow around the device. Additionally, derating the device's power dissipation according to the ambient temperature can help to prevent overheating.
Exceeding the maximum junction temperature (Tj) rating can lead to reduced device lifespan, increased thermal resistance, and potentially even device failure. Prolonged operation above the maximum Tj can cause permanent damage to the device, resulting in reduced performance, increased leakage current, or even catastrophic failure.
When selecting input and output capacitors for the NCP3335AMN250R2G, consider the following factors: capacitance value, voltage rating, ESR, and ripple current rating. A general rule of thumb is to choose capacitors with a voltage rating at least 1.5 times the maximum input voltage, and an ESR that is less than 1/10th of the device's output impedance. Additionally, ensure the capacitors can handle the expected ripple current and have a suitable temperature rating.
Not using the recommended input filter components can lead to reduced device performance, increased noise sensitivity, and potentially even device instability or oscillation. The input filter components help to filter out high-frequency noise and ensure a stable input voltage, which is essential for the device's operation. Omitting or substituting these components can compromise the device's performance and reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP3335AMN250R2G Overview

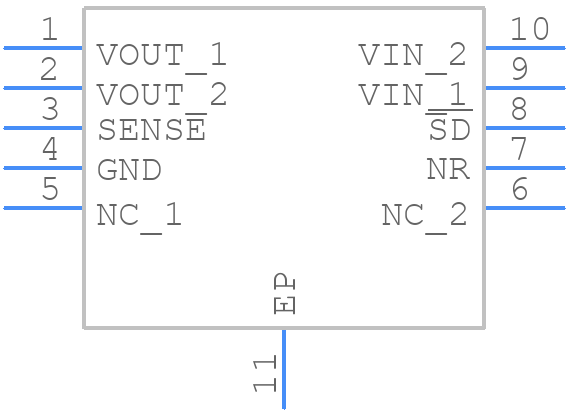

Use the download button to access the NCP3335AMN250R2G schematic symbol, PCB footprint, and 3D model.
