A good PCB layout for the NCP348AEMTTBG involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog and digital ground plane to reduce noise coupling.
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the output capacitor should be selected based on the specific application requirements, and the input capacitor should be chosen to ensure a stable input voltage. It's also recommended to add a small ceramic capacitor (e.g., 10nF) in parallel with the output capacitor to improve stability.
The NCP348AEMTTBG is rated for operation from -40°C to 125°C, making it suitable for a wide range of applications, including automotive and industrial systems.
Yes, the NCP348AEMTTBG is a high-reliability device, with a failure-in-time (FIT) rate of <10 FIT, making it suitable for use in high-reliability applications such as automotive, aerospace, and industrial systems.
The NCP348AEMTTBG has a thermal pad on the bottom of the package, which should be connected to a solid ground plane or a thermal heat sink to ensure effective heat dissipation. Additionally, the device should be mounted on a PCB with a good thermal conductivity to minimize thermal resistance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP348AEMTTBG Overview

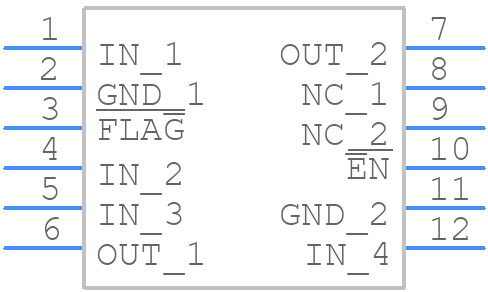

Use the download button to access the NCP348AEMTTBG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP34,
or try a keyword search, such as Power Management Circuits
