NCP349MNTBG - onsemi

Description: ON Semiconductor Intelligent Power Switch

Download NCP349MNTBG Model

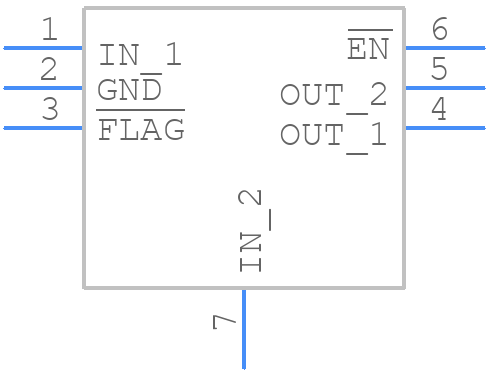

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP349MNTBG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN6, 1.6x2, 0.5P CASE 506BM−01 ISSUE O
click to zoom
3D Models
NCP349MNTBG - onsemi  - 3D model - Small Outline No-lead - DFN6, 1.6x2, 0.5P CASE 506BM−01 ISSUE O
click to zoom

NCP349MNTBG Details

  • Manufacturer Part Number:

    NCP349MNTBG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DFN6 2x1.6, 0.5P

  • Package Description:

    DFN-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    506BM

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • High Side Driver:

    NO

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    AND GATE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    2 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    28 V

  • Supply Voltage-Min:

    1.2 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    5 µs

  • Turn-on Time:

    2700 µs

  • Width:

    1.6 mm

NCP349MNTBG Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCP349MNTBG involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the output capacitor should be selected based on the specific application requirements, and the input capacitor should be chosen to ensure a stable input voltage. It's also recommended to add a small ceramic capacitor (e.g., 10nF) in parallel with the output capacitor to improve stability.
  • The NCP349MNTBG is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's essential to ensure that the device's junction temperature (TJ) does not exceed 150°C.
  • Yes, the NCP349MNTBG is suitable for high-reliability applications. It's manufactured using a robust process, and onsemi provides a range of reliability data, including FIT rates and MTBF calculations, to support high-reliability designs.
  • To troubleshoot issues with the NCP349MNTBG, start by verifying the input voltage, output voltage, and current consumption. Check the PCB layout and component values against the recommended values in the datasheet. Use an oscilloscope to inspect the input and output waveforms, and ensure that the device is not overheating. If the issue persists, consult the onsemi support team or a qualified engineer for further assistance.
