NCP367DPMUEETBG - onsemi

Description: ON SEMICONDUCTOR - NCP367DPMUEETBG - Battery Charge Front-End Overvoltage Protection, 1.2 V to 28 V supply, DFN-8

Download NCP367DPMUEETBG Model

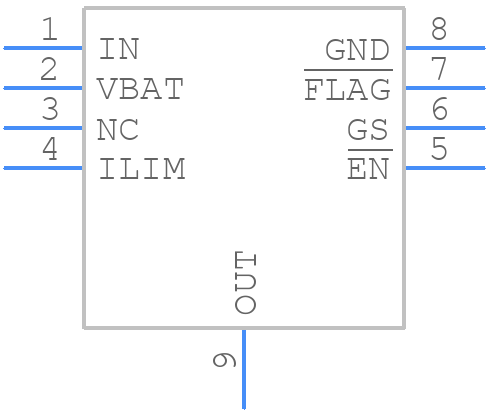

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP367DPMUEETBG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN8, 2.0x2.2, 0.5P CASE 506BP−01 ISSUE A_2022
click to zoom
3D Models
NCP367DPMUEETBG - onsemi  - 3D model - Small Outline No-lead - DFN8, 2.0x2.2, 0.5P CASE 506BP−01 ISSUE A_2022
click to zoom

NCP367DPMUEETBG Details

  • Manufacturer Part Number:

    NCP367DPMUEETBG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DFN8 2.0x2.2, 0.5P

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    506BP

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY MONITOR/PROTECTOR

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    0.13 mA

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    1.2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

NCP367DPMUEETBG Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure proper thermal design, use a heat sink if necessary, and follow the recommended operating conditions. Also, consider using a thermal interface material to improve heat transfer.
  • The maximum allowed voltage on the input pins is 6.5V, which is the absolute maximum rating. Operating the device above this voltage can cause damage or malfunction.
  • Yes, the NCP367DPMUEETBG is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, ensure that the device is used within the recommended operating conditions and follows the recommended design guidelines.
  • Use a systematic approach to troubleshoot issues. Check the power supply, input voltage, and output voltage. Verify that the device is operated within the recommended conditions. Use oscilloscopes or logic analyzers to monitor the device's behavior and identify potential issues.
