NCP383LMUAJAATXG - onsemi

Description: Operating Range; Current Limit; Current Limit Accuracy; Very Fast Over Current Detection Response; Very Low Standby Current; Soft Start; UL Listed; IEC60950-ED2-AMD1 Certified

Download NCP383LMUAJAATXG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

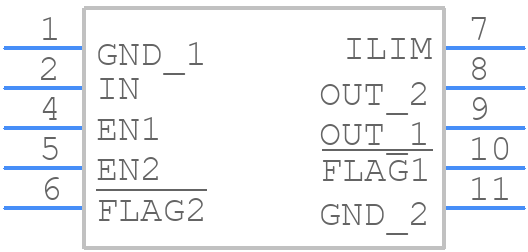

NCP383LMUAJAATXG - onsemi - PCB symbol
click to zoom
PCB Footprints
NCP383LMUAJAATXG - onsemi PCB footprint - Other - Other - UDFN10_2021
click to zoom
3D Models
NCP383LMUAJAATXG - onsemi - 3D model - Other - UDFN10_2021
click to zoom

NCP383LMUAJAATXG Details

  • Manufacturer Part Number:

    NCP383LMUAJAATXG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    UDFN10, 3.3, 0.5P (lead 2& 3 Tied)

  • Pin Count:

    10

  • Manufacturer Package Code:

    517CC

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • Analog IC - Other Type:

    SPST

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

NCP383LMUAJAATXG Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the thermal path short and use a thermal pad on the bottom of the IC.
  • Ensure a monotonic power-up and power-down sequence, and add a soft-start circuit to limit inrush current. Also, use a capacitor on the EN pin to filter out noise.
  • The maximum allowed voltage on the input pin is 26V, but it's recommended to keep it below 24V for reliable operation.
  • Use a shielded inductor, keep the switching node (SW) away from sensitive nodes, and add a common-mode choke to reduce EMI.
  • Use a low-ESR ceramic capacitor (e.g., X5R or X7R) with a value between 4.7uF to 10uF, depending on the input voltage and current requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCP383LMUAJAATXG Overview

Use the download button to access the NCP383LMUAJAATXG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP38, or try a keyword search, such as Multiplexers or Switches
