NCP3901FCCT1G - onsemi

Description: Battery Management DUAL INPUT SINGLE OUTPUT

Download NCP3901FCCT1G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

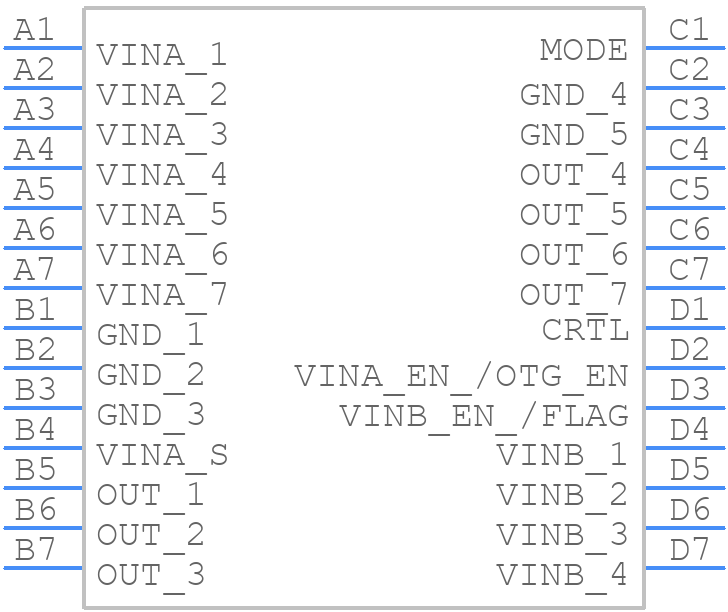

Symbol
NCP3901FCCT1G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCP3901FCCT1G - onsemi PCB footprint - BGA - BGA - WLCSP28
click to zoom
3D Models
NCP3901FCCT1G - onsemi - 3D model - BGA - WLCSP28
click to zoom

NCP3901FCCT1G Details

  • Manufacturer Part Number:

    NCP3901FCCT1G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Manufacturer Package Code:

    567KR

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES AT VINA 0V MINIMUM AND 28V MAX

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PBGA-B28

  • JESD-609 Code:

    e1

  • Length:

    3.1 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    TIN SILVER COPPER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.65 mm

NCP3901FCCT1G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCP3901FCCT1G involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces to reduce parasitic inductance and capacitance.
  • Choose capacitors with low ESR (Equivalent Series Resistance) and high ripple current rating. X5R or X7R ceramic capacitors are good options. The input capacitor should be at least 10uF, and the output capacitor should be at least 22uF.
  • The NCP3901FCCT1G can operate in an ambient temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures.
  • Yes, the NCP3901FCCT1G is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, ensure that you follow the recommended PCB layout, component selection, and thermal management guidelines to ensure reliable operation.
  • Check the input voltage, output load, and PCB layout for any issues. Verify that the input and output capacitors are properly selected and placed. Use a thermal camera or thermometer to check for overheating. Consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCP3901FCCT1G Overview

Use the download button to access the NCP3901FCCT1G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP39, or try a keyword search, such as Other Signal Circuits
