Description:Automatic parasitic inductance compensation input; 40 ns turn off delay from current sense input to driver output; Wide Vcc operating range up to 30 V; Externally adjustable minimum on and minimum off times; Trigger input for interfacing with primary side switching signal; Disable input for standby mode; 5 A / 2.5 A peak sink / source drive capability; True secondary ZCD with adjustable threshold; Gate drive clamp of either 12 V (A version) or 6 V (B version); Maximum frequency of operation up to 500 kHz
A good PCB layout for the NCP4303ADR2G involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate power plane for the device and to decouple the input and output pins.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input and output pins and to use a stable input voltage source.
The NCP4303ADR2G is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's recommended to consult the datasheet and thermal design guidelines to ensure the device operates within a safe temperature range.
Yes, the NCP4303ADR2G is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard and is designed to operate in harsh environments. However, it's recommended to consult the datasheet and application notes for specific guidance on using the device in these applications.
To troubleshoot issues with the NCP4303ADR2G, start by checking the input voltage, output voltage, and current draw. Verify that the device is properly soldered and that the PCB layout is correct. Check for signs of overheating, such as excessive temperature rise or thermal shutdown. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP4303ADR2G Overview

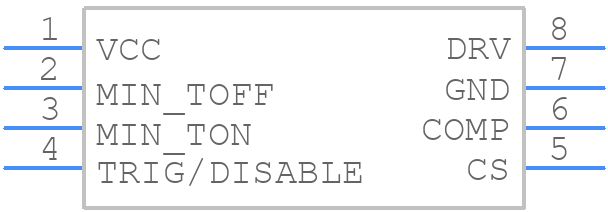

Use the download button to access the NCP4303ADR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP43,
or try a keyword search, such as Switching Regulator or Controllers
