Description:Precise True Secondary Zero Current Detection with Adjustable Threshold; Automatic Parasitic Inductance Compensation; Typically 40 ns Turn off Delay from Current Sense Input to Driver; Zero Current Detection Pin Capability up to 200 V; Optional Ultrafast Trigger Input; Disable Input; Adjustable Minimum ON Time and Minimum OFF Time; 5 A/2.5 A Peak Current Sink/Source Drive Capability; Operating Voltage Range up to 30V
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 2-layer or 4-layer PCB with a solid ground plane is recommended. Avoid placing thermal vias under the device, and keep the thermal pad clear of solder mask.
To ensure reliable operation at high temperatures, ensure that the device is operated within its specified temperature range (up to 150°C for the NCP4304BDR2G). Use a suitable thermal interface material (TIM) between the device and the heat sink, and ensure good airflow around the device. Monitor the device's junction temperature (TJ) and adjust the thermal design accordingly.
To mitigate EMI and RFI, use a shielded enclosure, and ensure that the PCB layout is designed to minimize radiation. Use a common-mode choke or a ferrite bead to filter the input and output lines. Place the device away from noise sources, and use a low-pass filter or a pi-filter to reduce high-frequency noise.
Select input and output capacitors with a suitable voltage rating, capacitance value, and ESR (equivalent series resistance). For the NCP4304BDR2G, use X5R or X7R ceramic capacitors with a voltage rating of at least 10V and a capacitance value of 10uF to 22uF. Ensure that the capacitors are placed close to the device and connected to the correct pins.
For PCB assembly, use a reflow soldering process with a peak temperature of 260°C. Ensure that the device is handled by trained personnel, and that the PCB is cleaned and dried before assembly. For rework, use a hot air rework station with a temperature-controlled heat source, and ensure that the device is not exposed to excessive heat or moisture.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP4304BDR2G Overview

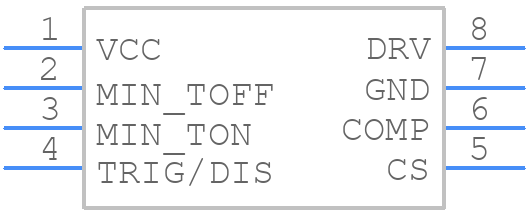

Use the download button to access the NCP4304BDR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP43,
or try a keyword search, such as Switching Regulator or Controllers
