A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 2-layer or 4-layer PCB with a solid ground plane is recommended. Avoid placing thermal vias under the device, and keep the thermal pad clear of solder mask.
To ensure reliable operation at high temperatures, ensure that the device is operated within the recommended temperature range (up to 150°C for the NCP4305ADR2G). Use a suitable thermal interface material (TIM) between the device and the heat sink, and ensure good airflow around the device. Monitor the device's junction temperature (TJ) and adjust the thermal design accordingly.
To mitigate EMI and RFI, use a shielded enclosure, and ensure good grounding and shielding of cables and connectors. Use a common-mode choke or ferrite bead on the input and output lines, and consider adding EMI filters or shielding to the PCB. Follow good PCB layout practices, such as separating analog and digital circuits, and using a solid ground plane.
Select input and output capacitors with a suitable voltage rating, capacitance value, and ESR (equivalent series resistance). For the NCP4305ADR2G, use X7R or X5R ceramic capacitors with a voltage rating of at least 10V and a capacitance value of 10uF to 22uF. Ensure the capacitors are placed close to the device and connected to the correct pins.
To ensure overcurrent protection, use a suitable current-sensing resistor (RSENSE) and set the overcurrent threshold (OCP) accordingly. Monitor the output current and voltage, and use a suitable fuse or PTC (positive temperature coefficient) thermistor to protect the device and the system from overcurrent conditions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP4305ADR2G Overview

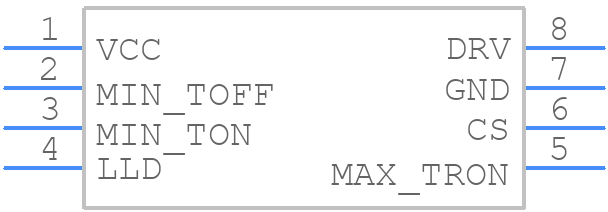

Use the download button to access the NCP4305ADR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP43,
or try a keyword search, such as Switching Regulator or Controllers
