NCP4306AAAZZZADR2G - onsemi

Description: Precise True Secondary Zero Current Detection; Typically 15 ns Turn off Delay from Current Sense Input to Driver; Zero Current Detection Pin Capability up to 200 V; Optional Ultrafast (10.5ns) Trigger Input; Disable Input; Adjustable Minimum ON Time and Minimum OFF Time; dV/dt detection; 7 A Sink, 2 A Source Drive capability; Automatic Light Load Disable Mode; 3.5V UVLO and Operation Voltage range up to 35V

Download NCP4306AAAZZZADR2G Model

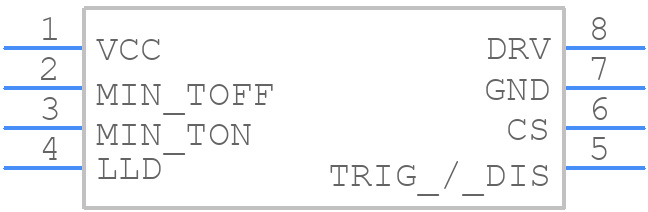

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP4306AAAZZZADR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin SOIC
click to zoom
3D Models
NCP4306AAAZZZADR2G - onsemi  - 3D model - Small Outline Packages - 8-Pin SOIC
click to zoom

NCP4306AAAZZZADR2G Details

  • Manufacturer Part Number:

    NCP4306AAAZZZADR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Date Of Intro:

    2017-11-07

  • Manufacturer:

    onsemi

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Technique:

    RESONANT CONTROL

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    2.2 mA

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    1000 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NCP4306AAAZZZADR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Also, ensure good thermal design, and consider using a heat sink if necessary.
  • The NCP4306AAAZZZADR2G has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-safe environment.
  • To troubleshoot issues with output voltage regulation, check the input voltage, output load, and feedback resistors. Ensure that the input voltage is within the recommended range, and that the output load is within the specified current limit. Also, verify that the feedback resistors are correctly selected and connected.
  • For PCB assembly and rework, follow standard SMT assembly procedures. Use a soldering iron with a temperature of 260°C or less, and avoid applying excessive heat or force, which can damage the device. For rework, use a hot air rework station with a temperature of 220°C or less.
