Description:Adaptive dead time control; Current inversion detection; Adaptive gate voltage control; 200V rated drain sensing pins for two channel MOSFET control
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using thick copper traces for heat dissipation, and keeping the device away from other heat sources. A 4-layer PCB with a dedicated thermal layer is also recommended.
To ensure stability, make sure to follow the recommended component values and layout guidelines in the datasheet. Additionally, use a low-ESR output capacitor, and place the feedback resistors close to the device. Avoid using long feedback traces and keep the input and output capacitors close to the device.
The maximum input voltage that can be applied to the NCP4318AHJDR2G is 18V. Exceeding this voltage may damage the device. It's recommended to use a voltage regulator or a transient voltage suppressor to protect the device from voltage spikes.
The NCP4318AHJDR2G is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's output current and voltage at high temperatures, and to use a heat sink or thermal management system to keep the device within its operating temperature range.
To troubleshoot issues with the device, start by checking the input voltage, output voltage, and output current. Verify that the device is properly connected and that the feedback loop is intact. Check for signs of overheating, such as a hot device or a burning smell. Use an oscilloscope to check for oscillations or noise on the output voltage. Consult the datasheet and application notes for troubleshooting guides and FAQs.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP4318AHJDR2G Overview

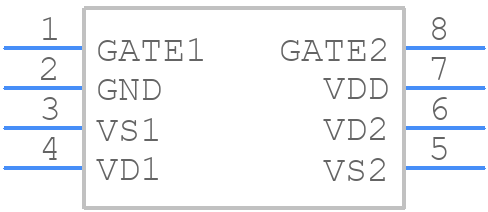

Use the download button to access the NCP4318AHJDR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP43,
or try a keyword search, such as Switching Regulator or Controllers
