A good PCB layout for the NCP4354BDR2G should prioritize thermal management, minimize parasitic inductance, and ensure good power and ground plane connections. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended. Additionally, place the input and output capacitors close to the device and use short, wide traces for the power paths.
To ensure stability, follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. A minimum of 10uF input capacitance and 22uF output capacitance is recommended. Also, avoid using capacitors with high ESL and ensure that the feedback loop is properly compensated.
The maximum ambient temperature for the NCP4354BDR2G is 105°C. However, the device's junction temperature (TJ) should not exceed 150°C. Ensure proper thermal management, such as using a heat sink or a thermal pad, to keep the junction temperature within the recommended range.
Yes, the NCP4354BDR2G is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard and is designed to withstand harsh environmental conditions. However, ensure that the device is used within its recommended operating conditions and that the application meets the required safety and reliability standards.
To troubleshoot issues with the NCP4354BDR2G, start by verifying the input voltage, output voltage, and current. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to monitor the output voltage and current waveforms. Also, ensure that the PCB layout and component values meet the recommended guidelines. If the issue persists, consult the datasheet and application notes or contact onsemi's technical support.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP4354BDR2G Overview

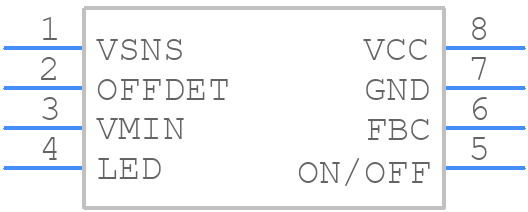

Use the download button to access the NCP4354BDR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP43,
or try a keyword search, such as Switching Regulator or Controllers
