A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 2-layer or 4-layer PCB with a solid ground plane is recommended. The datasheet provides a recommended PCB layout, but it's essential to consult with a PCB design expert for optimal results.
To ensure the device operates within the recommended operating conditions, it's essential to monitor the input voltage, output voltage, and output current. The device should be operated within the recommended voltage range (4.5V to 18V) and output current (up to 3A). Additionally, ensure the device is not exposed to extreme temperatures (above 150°C) or humidity.
When handling the device, it's essential to take precautions to prevent damage from electrostatic discharge (ESD). Use an ESD wrist strap or mat, and handle the device by the body or pins, avoiding touching the die. Also, avoid bending or flexing the leads, and use a vacuum pickup or tweezers to handle the device.
To troubleshoot issues with the device, start by checking the input voltage, output voltage, and output current. Verify that the device is operated within the recommended operating conditions. Check for any signs of physical damage, such as cracks or corrosion. Use a thermal imaging camera to detect overheating issues. Consult the datasheet and application notes for troubleshooting guidelines.
When using the device in a high-reliability application, consider the device's reliability ratings, such as the mean time between failures (MTBF) and the failure rate. Ensure the device is operated within the recommended operating conditions, and consider using redundancy or backup systems to mitigate the risk of device failure. Consult with a reliability engineer or a qualified expert for guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP4371AACDR2G Overview

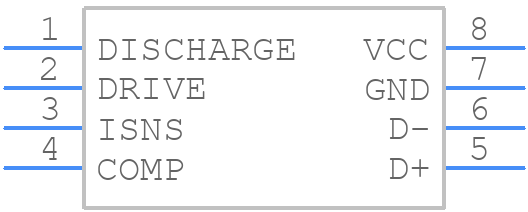

Use the download button to access the NCP4371AACDR2G schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP43,
or try a keyword search, such as Power Management Circuits
