NCP45540IMNTWG-L - onsemi

Description: Advanced Controller with Charge Pump; Integrated N-Channel MOSFET; Soft-Start via Slew Rate Control (Adjustable); Ultra-Low On-Resistance; Input Voltage Range 0.5 V to 13.5 V (18V Tolerant); Low Standby Current; Quick Output Discharge Function (Adjustable); No External Components Required; Enable Pins with CMOS Input Levels; Power Good Signaling ; Fault Protection: Over Temperature; Fault Protection: Under Voltage Lockout; Fault Protection: Short-Circuit Protection; Pb-Free Device

Download NCP45540IMNTWG-L Model

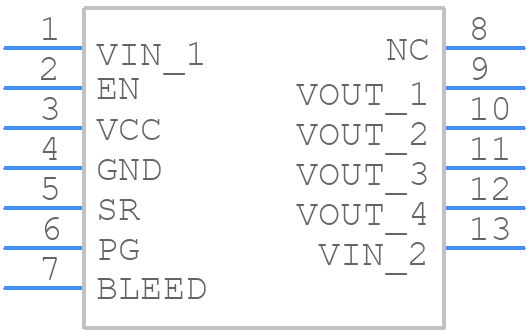

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP45540IMNTWG-L - onsemi PCB footprint - Other - Other - DFN12 3x3, 0.5P CASE 506CD ISSUE A
click to zoom
3D Models
NCP45540IMNTWG-L - onsemi  - 3D model - Other - DFN12 3x3, 0.5P CASE 506CD ISSUE A
click to zoom

NCP45540IMNTWG-L Details

  • Manufacturer Part Number:

    NCP45540IMNTWG-L

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN-12

  • Package Description:

    DFN-12

  • Manufacturer Package Code:

    506CD

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Analog IC - Other Type:

    Load switch

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • On-state Resistance-Max (Ron):

    0.0077 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    0.75 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

NCP45540IMNTWG-L Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the package to improve thermal performance. A minimum of 2oz copper thickness and a thermal relief pattern are recommended. Refer to the onsemi application note AND9093/D for more details.
  • The device requires a stable input voltage (VIN) and a proper bias voltage (VBIAS) to operate correctly. Ensure VIN is within the recommended range (4.5V to 18V) and VBIAS is set to 5V ± 10% for optimal performance.
  • The maximum current rating for the output pins is 1A per pin. However, the total current drawn from the device should not exceed 2A to prevent overheating and ensure reliable operation.
  • Use a voltage regulator or a voltage supervisor to ensure the input voltage (VIN) is within the recommended range. Add overvoltage protection (OVP) and undervoltage protection (UVP) circuits to prevent damage from voltage transients or faults.
  • The recommended operating temperature range for the NCP45540IMNTWG-L is -40°C to 125°C. However, the device can operate up to 150°C for short periods during fault conditions.
