NCP45750IMN24TWG - onsemi

Description: Advanced Controller with Charge Pump; Soft-Start via Slew Rate Control; Ultra-Low On-Resistance; Input Voltage Range 2 V to 24 V (30V Tolerant); Low Standby Current; Quick Output Discharge Function; No External Components Required; Enable Pins with CMOS Input Levels; Power Good Signaling; Fault Protection: Over Temperature; Fault Protection: Under Voltage Lockout; Fault Protection: Short-Circuit Protection; Fault Protection: Over Current Protection; Pb-Free Device

Download NCP45750IMN24TWG Model

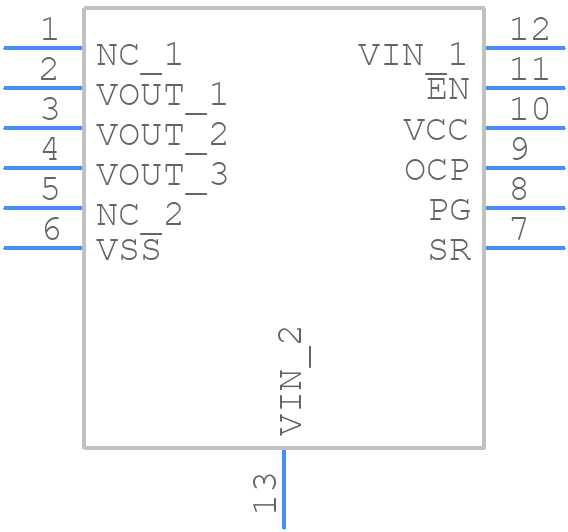

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP45750IMN24TWG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN12 3x3, 0.5P(H=1mm)
click to zoom
3D Models
NCP45750IMN24TWG - onsemi  - 3D model - Small Outline No-lead - DFN12 3x3, 0.5P(H=1mm)
click to zoom

NCP45750IMN24TWG Details

  • Manufacturer Part Number:

    NCP45750IMN24TWG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN-12

  • Manufacturer Package Code:

    506DY

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2018-12-12

  • Manufacturer:

    onsemi

  • YTEOL:

    7.13

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    Load switch

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max (Isup):

    0.5 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

NCP45750IMN24TWG Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the thermal pad connected to the ground plane to improve heat dissipation.
  • Ensure good airflow, use a heat sink if possible, and follow the recommended PCB layout. Also, consider derating the output current and voltage according to the temperature derating curve in the datasheet.
  • The maximum capacitance value for the output capacitor is 220uF. Exceeding this value may cause instability or oscillations in the regulator.
  • Yes, a ceramic capacitor can be used for the input capacitor, but ensure it has a high enough voltage rating and a low ESR to prevent oscillations.
  • Power dissipation (PD) can be calculated using the formula: PD = (VIN - VOUT) x IOUT + (VIN x IQ), where IQ is the quiescent current.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCP45750IMN24TWG Overview

Use the download button to access the NCP45750IMN24TWG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP45, or try a keyword search, such as Power Management Circuits
