Description:Fault Protection: Short-Circuit Protection; Advanced Controller with Charge Pump; Soft-Start via Slew Rate Control; Ultra-Low On-Resistance; Input Voltage Range 2 V to 24 V (30V Tolerant); Low Standby Current; Quick Output Discharge Function; No External Components Required; Enable Pins with CMOS Input Levels; Power Good Signaling; Fault Protection: Over Temperature; Fault Protection: Under Voltage Lockout; Pb-Free Device; Fault Protection: Over Current Protection
A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, ensure good thermal design, and consider using a heat sink if necessary. Additionally, consider using a thermal interface material to improve heat transfer between the device and the heat sink.
Exceeding the maximum junction temperature can lead to reduced device lifespan, decreased performance, and potentially even device failure. It's essential to ensure that the device operates within the recommended temperature range to maintain reliability and performance.
To handle ESD protection, it's recommended to follow proper handling and storage procedures, use ESD-protective packaging, and consider adding external ESD protection devices if necessary. Additionally, ensure that the PCB design includes ESD protection features, such as TVS diodes or ESD protection arrays.
Not following the recommended pin connections can lead to device malfunction, reduced performance, or even device failure. It's essential to follow the recommended pin connections to ensure proper device operation and to avoid potential issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP45760IMN24RTWG Overview

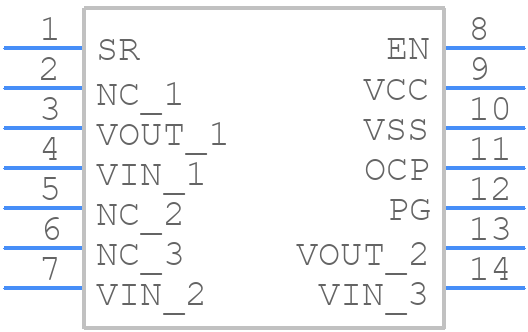

Use the download button to access the NCP45760IMN24RTWG schematic symbol, PCB footprint, and 3D model.
