Part Image

NCP51400MNTXG - onsemi

Description: Input Voltage Rails: Supports 2.5 V, 3.3 V and 5 V Rails; PVCC Voltage Range: 1.1 V to 3.5 V; Fast Load−Transient Response; PGOOD − Logic output pin to Monitor VTT Regulation; EN − Logic input pin for Shutdown mode; VRI − Reference Input Allows for Flexible Input Tracking Either Directly or Through Resistor Divider; Built−in Soft Start, Under Voltage Lockout and Over Current Limit

Download NCP51400MNTXG Model

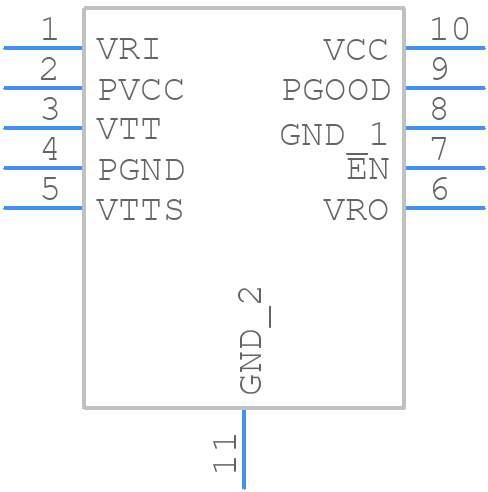

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP51400MNTXG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - NCP51400MNTXG-1
click to zoom
3D Models
NCP51400MNTXG - onsemi  - 3D model - Small Outline No-lead - NCP51400MNTXG-1
click to zoom

NCP51400MNTXG Details

  • Manufacturer Part Number:

    NCP51400MNTXG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN-10

  • Package Description:

    DFN-10

  • Manufacturer Package Code:

    506CL

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    DDR TERMINATION REGULATOR

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

NCP51400MNTXG Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the thermal pad connected to the ground plane to improve heat dissipation.
  • Ensure good thermal design, use a heat sink if necessary, and follow the recommended operating conditions. Monitor the junction temperature (TJ) and adjust the design accordingly.
  • The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage may damage the device.
  • Yes, the NCP51400MNTXG is suitable for high-reliability applications. It is manufactured using a robust process and has undergone rigorous testing to ensure its reliability.
  • Check the input voltage, enable pin (EN), and output voltage. Verify that the input voltage is within the recommended range and the enable pin is properly biased. Check for any short circuits or overload conditions.
