TPS51200DRCT - Texas Instruments

Description: Power Management Specialised - PMIC Sink/Source DDR Term Regulator

Download TPS51200DRCT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

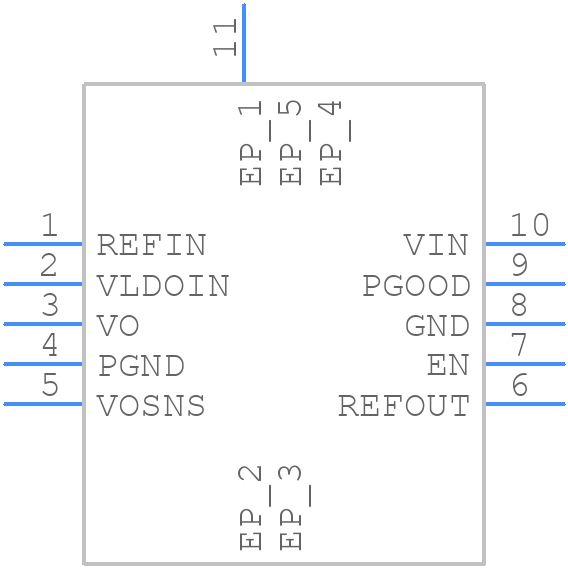

TPS51200DRCT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS51200DRCT - Texas Instruments PCB footprint - Other - Other - DRC0010J_2023
click to zoom
3D Models
TPS51200DRCT - Texas Instruments - 3D model - Other - DRC0010J_2023
click to zoom

TPS51200DRCT Details

  • Manufacturer Part Number:

    TPS51200DRCT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    10

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Input Voltage-Max:

    3.5 V

  • Input Voltage-Min:

    1.1 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    3 A

  • Output Voltage1-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    DDR TERMINATION REGULATOR

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS51200DRCT Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS51200DRCT involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. TI provides a recommended layout in the datasheet and in application notes.
  • Choose input capacitors with low ESR and high ripple current rating. For output capacitors, choose ones with low ESR and high capacitance. TI recommends using ceramic or polymer capacitors. The datasheet provides guidelines for capacitor selection.
  • The maximum ambient temperature for the TPS51200DRCT is 85°C. However, the device can operate up to 125°C junction temperature. Ensure proper thermal design and heat sinking to maintain a safe operating temperature.
  • Yes, the TPS51200DRCT is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard and is designed for harsh environments. However, ensure that you follow the recommended design and testing procedures for your specific application.
  • Start by checking the input voltage, output voltage, and current. Verify that the PCB layout and component selection meet the recommended guidelines. Use an oscilloscope to check for voltage ripple and noise. Consult the datasheet and application notes for troubleshooting guides and FAQs.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS51200DRCT Overview

Use the download button to access the TPS51200DRCT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS51, or try a keyword search, such as Other Regulators

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
