NCP5500DADJR2G - onsemi

Description: Output Current up to 500 mA; 2.9% Output Voltage Accuracy; Low Dropout Voltage (230 mV at 500 mA); Enable Control Pin (NCP5500 / NCV5500); Reverse Bias Protection; Short Circuit Protection; Thermal Shutdown; Wide Operating Temperature Range NCV5500 / NCV5501; -40 °C to +125 °C Ambient Temperature NCP5500 / NCP5501; -40 °C to +85 °C Ambient Temperature; NCV Prefix for Applications that Require Site and Change Control; Stable with Low Cost Ceramic Capacitors; These are Pb-Free Devices

Download NCP5500DADJR2G Model

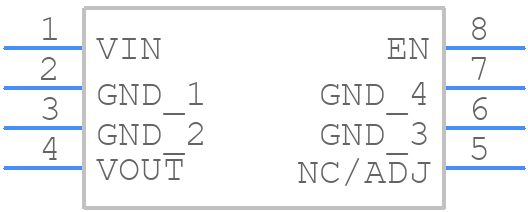

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP5500DADJR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CASE 751-07
click to zoom
3D Models
NCP5500DADJR2G - onsemi  - 3D model - Small Outline Packages - SOIC-8 NB CASE 751-07
click to zoom

NCP5500DADJR2G Details

  • Manufacturer Part Number:

    NCP5500DADJR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 Narrow Body

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.7 V

  • Dropout Voltage1-Nom:

    0.23 V

  • Input Voltage Absolute-Max:

    18 V

  • Input-Output Voltage Differential-Max:

    14.75 V

  • Input-Output Voltage Differential-Min:

    1.25 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Line Regulation-Max (%/V):

    0.074

  • Load Regulation-Max(%):

    1%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    5 V

  • Output Voltage1-Min:

    1.25 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NCP5500DADJR2G Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure that the input voltage rises and falls monotonically, and that the enable pin is properly biased during start-up and shutdown. A soft-start circuit can also be used to reduce inrush current.
  • The maximum allowed input voltage ripple is 10% of the nominal input voltage. Exceeding this limit may affect the device's performance and reliability.
  • Yes, but the device's performance and reliability may be affected above 125°C. Ensure that the device is properly heat-sinked and that the junction temperature is kept below 150°C.
  • Check the PCB layout for noise coupling, ensure that the output capacitor is properly sized and placed, and verify that the feedback loop is properly compensated. Consult the application note for more information.
