NCP5662DSADJR4G - onsemi

Description: Linear Voltage Regulator IC Positive Adjustable 1 Output 2A D2PAK-5

Download NCP5662DSADJR4G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

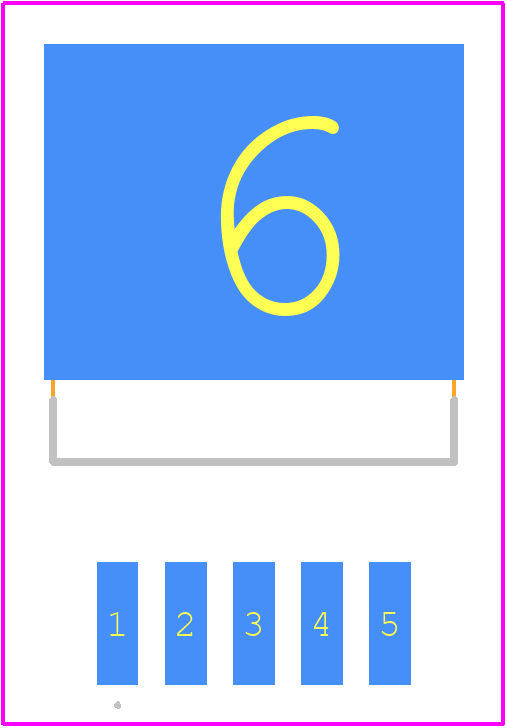

NCP5662DSADJR4G - onsemi PCB footprint - Other - Other - NCP5662DSADJR4G-2
click to zoom

NCP5662DSADJR4G Details

  • Manufacturer Part Number:

    NCP5662DSADJR4G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    5 LEAD D2PAK

  • Pin Count:

    5

  • Manufacturer Package Code:

    936A-02

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    1.3 V

  • Dropout Voltage1-Nom:

    1 V

  • JESD-30 Code:

    R-PSSO-G5

  • JESD-609 Code:

    e3

  • Length:

    10.18 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    5

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    2 A

  • Output Voltage1-Max:

    7.7 V

  • Output Voltage1-Min:

    0.9 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TO-263

  • Package Equivalence Code:

    SMSIP5H,.54,67TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    4.57 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.7 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    8.51 mm

NCP5662DSADJR4G Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
  • To ensure stability of the output voltage in a noisy environment, it's recommended to use a low-ESR output capacitor, and to add a 10nF-100nF ceramic capacitor in parallel with the output capacitor to filter out high-frequency noise.
  • Although the datasheet specifies a maximum input voltage of 18V, it's recommended to limit the input voltage to 15V to ensure reliable operation and to prevent damage to the device.
  • The power dissipation of the device can be calculated using the formula: Pd = (Vin - Vout) x Iout x Efficiency. The efficiency of the device can be obtained from the datasheet or the manufacturer's website.
  • A 10uF-22uF ceramic or electrolytic capacitor with a voltage rating of 25V or higher is recommended for the input capacitor. The capacitor should be placed as close to the device as possible to minimize noise and ripple.
