NCP5662MN33R2G footprint, schematic symbol and 3D model by onsemi

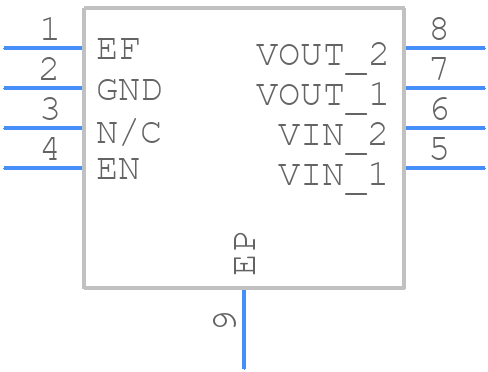

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for NCP5662MN33R2G
Part Number NCP5662MN33R2G
Manufacturer onsemi
Pin Count 9
Part Category Integrated Circuit
Package Category Small Outline No-lead
Footprint Name Small Outline No-lead - 8 PIN DFN 4x4 CASE 488AF-01 ISSUE C
Released Date Jan 29, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

NCP5662MN33R2G Details

Manufacturer Part Number:
NCP5662MN33R2G
Brand Name:
onsemi
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
8 PIN DFN, 4x4
Pin Count:
8
Manufacturer Package Code:
488AF
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
onsemi
YTEOL:
0
Adjustability:
FIXED
Dropout Voltage1-Max:
1.3 V
Dropout Voltage1-Nom:
1 V
Input Voltage Absolute-Max:
18 V
Input Voltage-Max:
9 V
Input Voltage-Min:
4.6 V
JESD-30 Code:
S-PDSO-N8
JESD-609 Code:
e3
Length:
4 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
8
Operating Temperature TJ-Max:
150 °C
Operating Temperature TJ-Min:
-40 °C
Output Current1-Max:
2 A
Output Voltage1-Max:
3.366 V
Output Voltage1-Min:
3.234 V
Output Voltage1-Nom:
3.3 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVSON
Package Equivalence Code:
SOLCC8,.15,32
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Regulator Type:
FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max:
1 mm
Surface Mount:
YES
Technology:
BIPOLAR
Terminal Finish:
MATTE TIN
Terminal Form:
NO LEAD
Terminal Pitch:
0.8 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Voltage Tolerance-Max:
2%
Width:
4 mm

NCP5662MN33R2G Frequently Asked Questions (FAQs)

The recommended PCB layout for optimal thermal performance involves placing the device on a thermal pad connected to a large copper area on the PCB, and ensuring good airflow around the device. A 4-layer PCB with a solid ground plane and a thermal relief pattern around the thermal pad is also recommended.
To ensure the device is properly biased during startup, make sure to provide a stable input voltage (VIN) and a valid enable signal (EN) before applying the output voltage (VOUT). Also, ensure that the output capacitor (COUT) is properly sized and placed close to the device to minimize voltage overshoot and ringing.
The maximum output current capability of the NCP5662MN33R2G is 3A, but it can be limited by the thermal performance of the PCB and the device's thermal derating. It's recommended to derate the output current based on the ambient temperature and the device's junction temperature.
The NCP5662MN33R2G has built-in OVP and UVLO features. For OVP, the device will shut down if the input voltage exceeds 6.5V. For UVLO, the device will shut down if the input voltage falls below 2.5V. You can also add external components to adjust the OVP and UVLO thresholds if needed.
The recommended input capacitor value is 10uF to 22uF, and it should be a low-ESR ceramic capacitor (X5R or X7R dielectric) placed close to the device's input pins. This helps to filter out input noise and ensure stable operation.

Trust Checks

Community Provided

System Verified

Community Approved

NCP5662MN33R2G Overview

Use the download button to access the NCP5662MN33R2G schematic symbol, PCB footprint, and 3D model.
