NCP5662MNADJR2G - onsemi

Description: ON Semiconductor NCP5662MNADJR2G, LDO Voltage Regulator, Adjustable 2A, ±2%, 2 → 9 Vin, 8-Pin DFN

Download NCP5662MNADJR2G Model

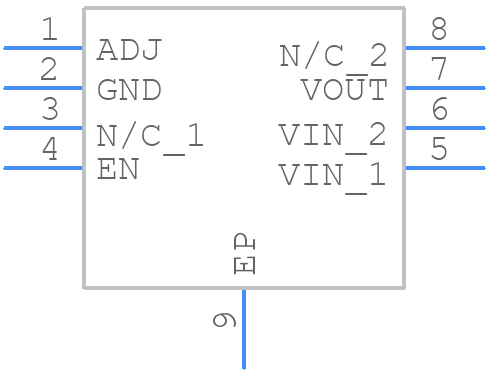

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP5662MNADJR2G - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN8, 4x4 CASE 488AF−01
click to zoom
3D Models
NCP5662MNADJR2G - onsemi  - 3D model - Small Outline No-lead - DFN8, 4x4 CASE 488AF−01
click to zoom

NCP5662MNADJR2G Details

  • Manufacturer Part Number:

    NCP5662MNADJR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    8 PIN DFN, 4x4

  • Pin Count:

    8

  • Manufacturer Package Code:

    488AF

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    1.3 V

  • Dropout Voltage1-Nom:

    1 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    2 A

  • Output Voltage1-Max:

    7.7 V

  • Output Voltage1-Min:

    0.9 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.15,32

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

NCP5662MNADJR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. A 2-layer or 4-layer PCB with a solid ground plane is recommended. Avoid placing thermal vias under the device, and ensure that the thermal pad is connected to a solid ground plane.
  • To ensure the device is properly biased, make sure to connect the EN pin to a stable voltage source, and ensure that the input voltage (VIN) is within the recommended operating range. Also, ensure that the output voltage (VOUT) is set to the desired value using the FB pin and the resistive divider network.
  • The critical components that affect the device's stability and performance include the input capacitor (CIN), output capacitor (COUT), and the resistive divider network (R1 and R2). Ensure that these components are selected and placed correctly to ensure stable operation and optimal performance.
  • To troubleshoot issues with the device, start by checking the PCB layout and component placement for any errors or omissions. Verify that the input and output capacitors are properly selected and placed. Check the resistive divider network for correct values and placement. Also, ensure that the device is properly biased and that the input voltage is within the recommended operating range.
  • To ensure EMI and EMC compliance, consider the following: use a shielded enclosure, keep the PCB layout compact, use a common-mode choke or ferrite bead on the input, and ensure that the output filter is properly designed and placed. Also, ensure that the device is properly decoupled and that the input and output capacitors are selected and placed correctly.
