NCP59748MN1ADJTBG - onsemi

Description: Guaranteed Output Current from 0mA to 1.5A; Excellent Transient Response; 0.5% Typical Output Voltage Accuracy; Operating Input Voltage from 0.8V to 5.5V; Output Voltage Adjustable from 0.8V to 3.6V; Output Current in Excess of 1.5 A; 60 mV typical dropout at the full 1.5 A load.; Stable with Any Type of Output Capacitor; Fast Transient Response; Programmable Soft-Start; Open Drain Power Good Output; Ultra-Low Dropout of Typ. 60mV

Download NCP59748MN1ADJTBG Model
Schematic

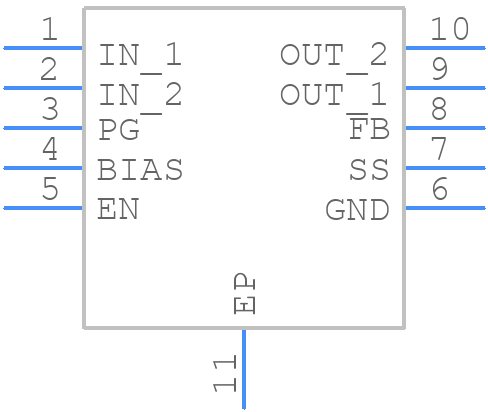

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP59748MN1ADJTBG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN10 3x3, 0.5P
click to zoom
3D Models
NCP59748MN1ADJTBG - onsemi  - 3D model - Small Outline No-lead - DFN10 3x3, 0.5P
click to zoom

NCP59748MN1ADJTBG Details

  • Manufacturer Part Number:

    NCP59748MN1ADJTBG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN10, 3x3, 0.5P

  • Package Description:

    DFN-10

  • Manufacturer Package Code:

    485C

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    7.99

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.165 V

  • Dropout Voltage1-Nom:

    0.06 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max (%/V):

    0.03

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1.5 A

  • Output Voltage1-Max:

    3.6 V

  • Output Voltage1-Min:

    0.796 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

NCP59748MN1ADJTBG Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure proper thermal design, use a heat sink if necessary, and follow the recommended operating conditions. Also, consider using a thermal interface material (TIM) to improve heat transfer between the device and heat sink.
  • Exceeding the maximum TJ rating can lead to reduced lifespan, decreased performance, and potentially catastrophic failure. It's essential to ensure the device operates within the recommended temperature range.
  • Follow standard ESD handling procedures, such as using ESD-safe workstations, wrist straps, and packaging materials. Ensure that the device is properly grounded during assembly and handling.
  • Follow the recommended soldering profile: peak temperature 260°C, time above 217°C 60s, and time above 183°C 150s. Use a solder with a melting point above 217°C.
