NCV59748MWADJTBG - onsemi

Description: Ultra-Low Dropout of Typ. 60 mV; Output Voltage 0.75 V (Fix Volt) and Adjustable from 0.8 V to 3.6 V; 60 mV typical dropout at the full 1.5 A load.; Guaranteed Output Current from 0 mA to 1.5 A; Excellent Transient Response; 0.5% Typical Output Voltage Accuracy; Output Current in Excess of 1.5 A; Stable with Any Type of Output Capacitor; Fast Transient Response; Programmable Soft-Start; Open Drain Power Good Output; Operating Input Voltage from 0.8 V to 5.5 V

Download NCV59748MWADJTBG Model

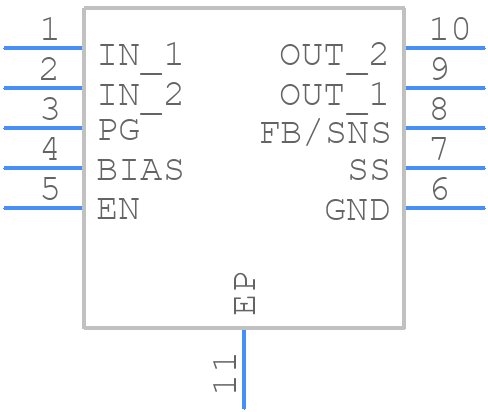

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV59748MWADJTBG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN10, 3x3, 0.5P CASE 485C ISSUE F
click to zoom
3D Models
NCV59748MWADJTBG - onsemi  - 3D model - Small Outline No-lead - DFN10, 3x3, 0.5P CASE 485C ISSUE F
click to zoom

NCV59748MWADJTBG Details

  • Manufacturer Part Number:

    NCV59748MWADJTBG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN-10

  • Package Description:

    DFN-10

  • Manufacturer Package Code:

    485C

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.99

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.165 V

  • Dropout Voltage1-Nom:

    0.06 V

  • JESD-30 Code:

    S-XDSO-N10

  • Length:

    3 mm

  • Line Regulation-Max (%/V):

    0.03

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1.5 A

  • Output Voltage1-Max:

    3.6 V

  • Output Voltage1-Min:

    0.796 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

NCV59748MWADJTBG Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern under the device.
  • Implement a robust thermal management system, including a heat sink, thermal interface material, and a cooling fan if necessary. Monitor the device's junction temperature and adjust the system design accordingly.
  • Use a common-mode choke and a differential-mode filter to reduce EMI. Ensure proper shielding of the device and PCB traces, and consider using a metal can or shielded enclosure.
  • Consult the application note and reference design for the specific application (e.g., automotive, industrial, or consumer). Optimize the PCB layout, component selection, and thermal design accordingly.
  • Use a 4-wire Kelvin connection for accurate voltage and current measurements. Ensure proper probe placement and consider using a high-impedance probe for voltage measurements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCV59748MWADJTBG Overview

Use the download button to access the NCV59748MWADJTBG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV59, or try a keyword search, such as Linear Regulator ICs

Parts related to NCV59748MWADJTBG

Showing 0 results

NCV59748MWADJTBG Alternates

Showing results

Image Part Number Model
Part Image TPS74801DRCR Texas Instruments

Adjustable Positive LDO Regulator, 0.8V Min, 3.6V Max, 0.165V Dropout, PMOS, PDSO10

Part Image NCP59748MN1ADJTBG onsemi

Adjustable Positive LDO Regulator, 0.796V Min, 3.6V Max, 0.165V Dropout, CMOS, PDSO10

Part Image TPS74801DRCT Texas Instruments

Adjustable Positive LDO Regulator, 0.8V Min, 3.6V Max, 0.165V Dropout, PMOS, PDSO10

Part Image TPS74801DRCTG4 Texas Instruments

Adjustable Positive LDO Regulator, 0.8V Min, 3.6V Max, 0.165V Dropout, PMOS, PDSO10

Part Image TPS74801DRCRG4 Texas Instruments

Adjustable Positive LDO Regulator, 0.8V Min, 3.6V Max, 0.165V Dropout, PMOS, PDSO10

For a full list of alternate parts for NCV59748MWADJTBG, check out Findchips.com
