NCP623MN-33R2G - onsemi

Description: Obsolete - LDO Regulator, 150 mA, High PSRR, Low Noise, with On/Off Control

Download NCP623MN-33R2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

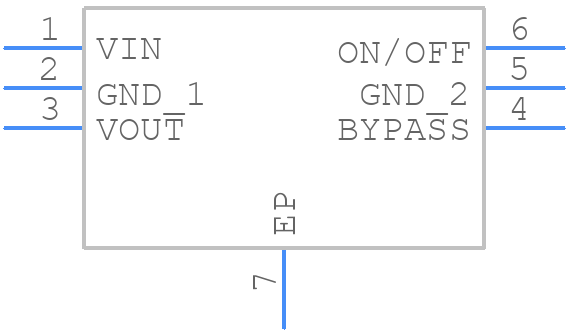

Symbol
NCP623MN-33R2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCP623MN-33R2G - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - NCP623MN-33R2G-
click to zoom
3D Models
NCP623MN-33R2G - onsemi - 3D model - Small Outline No-lead - NCP623MN-33R2G-
click to zoom

NCP623MN-33R2G Details

  • Manufacturer Part Number:

    NCP623MN-33R2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    6 PIN DFN, 3x3

  • Package Description:

    DFN-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    488AE

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.26 V

  • Dropout Voltage1-Nom:

    0.18 V

  • Input Voltage Absolute-Max:

    12 V

  • Input Voltage-Max:

    12 V

  • Input Voltage-Min:

    4.3 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max:

    0.01%

  • Load Regulation-Max:

    0.045%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.15 A

  • Output Voltage1-Max:

    3.37 V

  • Output Voltage1-Min:

    3.23 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2.1%

  • Width:

    3 mm

NCP623MN-33R2G Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the device on a thermal pad with a minimum size of 20mm x 20mm, and using multiple vias to connect the thermal pad to the ground plane. Additionally, keeping the thermal pad away from other heat sources and using a thermal interface material can help to improve thermal performance.
  • To ensure the device is properly biased for stable operation, make sure to provide a stable input voltage within the recommended range (2.7V to 5.5V), and use a suitable bypass capacitor (e.g. 1uF ceramic capacitor) to decouple the input voltage. Additionally, ensure that the output voltage is within the recommended range (1.8V to 3.3V) and that the output current is within the specified limit (3A).
  • The maximum allowed input voltage ripple for the NCP623MN-33R2G is 100mV peak-to-peak. Exceeding this limit may affect the device's stability and performance.
  • The NCP623MN-33R2G is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may be affected at high temperatures. It is recommended to derate the output current and ensure proper thermal management to prevent overheating.
  • To troubleshoot issues with the device's output voltage regulation, check the input voltage, output current, and output voltage levels using an oscilloscope or multimeter. Ensure that the input voltage is within the recommended range, and that the output current is within the specified limit. Also, check for any signs of overheating, such as excessive temperature or thermal shutdown.
