Part Image

NCP6324BMTAATBG - onsemi

Description: 3 MHz Switching Frequency; Automatic Power Save Mode (NCP6324B) or Operating Mode Selection (NCP6324C); 2.5 V to 5.5 V Input Voltage Range

Download NCP6324BMTAATBG Model

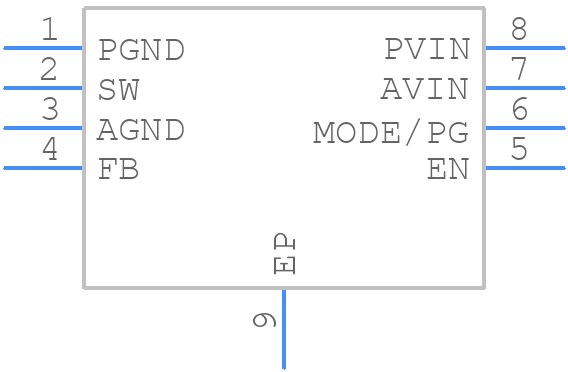

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP6324BMTAATBG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - NCP6354BMTAATBG
click to zoom
3D Models
NCP6324BMTAATBG - onsemi  - 3D model - Small Outline No-lead - NCP6354BMTAATBG
click to zoom

NCP6324BMTAATBG Details

  • Manufacturer Part Number:

    NCP6324BMTAATBG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFN-8

  • Package Description:

    WDFN-8

  • Manufacturer Package Code:

    511BE

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Additional Feature:

    ALSO OPERATES IN PFM CONTROL TECHNIQUE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.5 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    0.6 V

  • Output Voltage-Nom:

    1.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    3300 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

NCP6324BMTAATBG Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NCP6324BMTAATBG is -40°C to 125°C.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF and a maximum ESR of 1 ohm. Additionally, the output voltage can be stabilized by adding a 10nF capacitor between the VOUT and GND pins.
  • The recommended input capacitor value for the NCP6324BMTAATBG is 10uF to 22uF, with a voltage rating of 6.3V or higher.
  • The output voltage of the NCP6324BMTAATBG can be calculated using the following formula: VOUT = 0.8V x (1 + R1/R2), where R1 and R2 are the resistors connected to the FB pin.
  • The maximum input voltage for the NCP6324BMTAATBG is 18V.
