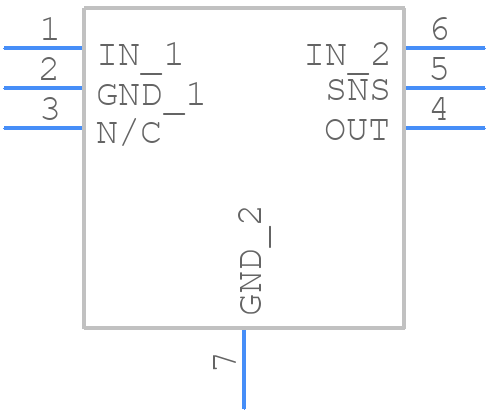

NCP690MN15T2G - onsemi

NCP690MN15T2G Details

• Manufacturer Part Number:

  NCP690MN15T2G

• Brand Name:

  onsemi

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  DFN 3x3x0.9mm, 0.95p

• Pin Count:

  6

• Manufacturer Package Code:

  506AH

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  9 Weeks

• Manufacturer:

  onsemi

• YTEOL:

  7.3

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  0.41 V

• Dropout Voltage1-Nom:

  0.29 V

• Input Voltage Absolute-Max:

  6.5 V

• Input Voltage-Max:

  6 V

• Input Voltage-Min:

  1.91 V

• JESD-30 Code:

  S-PDSO-N6

• JESD-609 Code:

  e3

• Length:

  3 mm

• Line Regulation-Max:

  0.008%

• Load Regulation-Max:

  0.03%

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  6

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Output Current1-Max:

  1 A

• Output Voltage1-Max:

  1.53 V

• Output Voltage1-Min:

  1.47 V

• Output Voltage1-Nom:

  1.5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC6,.12,38

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Regulator Type:

  FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  1 mm

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.95 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Voltage Tolerance-Max:

  2%

• Width:

  3 mm
