NCP708MU330TAG - onsemi

Description: 2.4 V to 5.5 V Operating Input Voltage Range; Fixed Output Voltage Option: 3.3 V (others available upon request); Low Quiescent Current of Typ. 200 µA; Very Low Dropout: 250 mV Max. at Iout = 1 A; High 70 dB at 1 kHz PSRR; Internal Soft-Start; ±1.5% Accuracy Over Load/Line/Temperature; Thermal Shutdown and Current Limit Protections; Available in UDFN6 3x3 mm Package

Download NCP708MU330TAG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

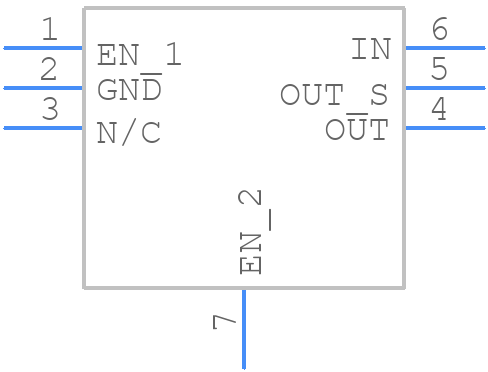

NCP708MU330TAG - onsemi - PCB symbol
click to zoom
PCB Footprints
NCP708MU330TAG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - UDFN6-
click to zoom
3D Models
NCP708MU330TAG - onsemi - 3D model - Small Outline No-lead - UDFN6-
click to zoom

NCP708MU330TAG Details

  • Manufacturer Part Number:

    NCP708MU330TAG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    UDFN-6

  • Package Description:

    UDFN-6

  • Manufacturer Package Code:

    517DD

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    7.3

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.33 V

  • Dropout Voltage1-Nom:

    0.3 V

  • Input Voltage Absolute-Max:

    6 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    3.6 V

  • JESD-30 Code:

    S-PDSO-N6

  • Length:

    3 mm

  • Line Regulation-Max:

    0.002%

  • Load Regulation-Max:

    0.002%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1 A

  • Output Voltage1-Max:

    3.35 V

  • Output Voltage1-Min:

    3.25 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.55 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Gold/Palladium (Ni/Au/Pd)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    1.5%

  • Width:

    3 mm

NCP708MU330TAG Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
  • To ensure the stability of the output voltage, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, make sure to use a sufficient output capacitor with a low ESR (Equivalent Series Resistance) to minimize voltage ripple.
  • Although the datasheet specifies a maximum input voltage of 26V, it's recommended to derate the input voltage to 24V to ensure reliable operation and to prevent damage to the device.
  • While the device is rated for operation up to 125°C, it's essential to consider the thermal derating curve and ensure that the device does not exceed the maximum junction temperature (Tj) of 150°C. Proper heat sinking and thermal management are crucial in high-temperature environments.
  • To troubleshoot issues, start by verifying the input voltage, output voltage, and current. Check the PCB layout and component values to ensure they match the recommended values. Use an oscilloscope to measure the output voltage ripple and check for any signs of oscillation. If the issue persists, consult the datasheet and application notes for further guidance.
