NCP731ADN330R2G - onsemi

Description: Operating Input Voltage Range: 2.7 V to 38 V; Output Voltage Adjustable Range: 1.2 V to 35 V; Very Low Noise: 8 µVRMS (10 Hz to 100 kHz); Low Quiescent Current: 48 µA typ.; Low Dropout: 230 mV typ. at 150 mA; Output Voltage Accuracy ±0.6%; Power Good Output with Programmable Delay (Version B); Stable with Small 1 µF Ceramic Capacitors; Soft Start Input pin

Download NCP731ADN330R2G Model

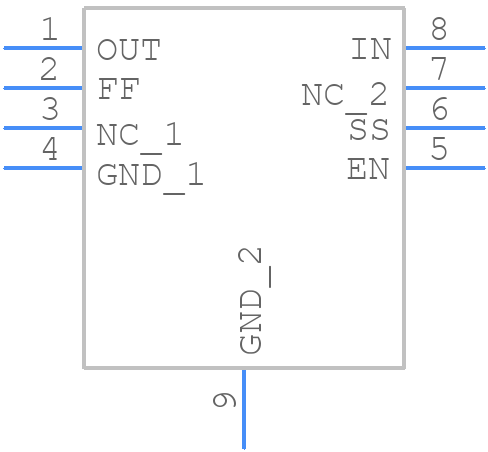

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP731ADN330R2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - MSOP8 EP 3x3 CASE 846AT ISSUE O
click to zoom
3D Models
NCP731ADN330R2G - onsemi  - 3D model - Small Outline Packages - MSOP8 EP 3x3 CASE 846AT ISSUE O
click to zoom

NCP731ADN330R2G Details

  • Manufacturer Part Number:

    NCP731ADN330R2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP8 EP 3x3

  • Package Description:

    MSOP-8

  • Manufacturer Package Code:

    846AT

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.48 V

  • Dropout Voltage1-Nom:

    0.23 V

  • Input Voltage Absolute-Max:

    40 V

  • Input Voltage-Max:

    38 V

  • Input Voltage-Min:

    4.3 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.15 A

  • Output Voltage1-Max:

    3.3495 V

  • Output Voltage1-Min:

    3.25 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    1.5%

  • Width:

    3 mm
