Description:Wide Input Voltage Range, DC: Up to 450 V, AC: 85 V to 260 V; 10 mA Guaranteed Output Current; Thermal Shutdown and Current Limit Protection; Ultra Low Quiescent Current: Typ. 10 µA (VOUT ≤ 15 V); ±5% Accuracy Over Full Load, Line and Temperature Variations; Ultra−high PSRR: 70 dB at 60 Hz, 90 dB at 100 kHz
ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Seated Height-Max:
1 mm
Surface Mount:
YES
Terminal Form:
NO LEAD
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Width:
5 mm
NCP786AMNADJTBG Frequently Asked Questions (FAQs)
A good PCB layout for the NCP786AMNADJTBG should include a solid ground plane, wide power traces, and a thermal relief pattern under the device. The datasheet provides a recommended land pattern, but it's essential to consult with onsemi's application notes and thermal management guidelines for more detailed information.
To ensure reliable operation in high-temperature environments, it's crucial to follow onsemi's recommended operating conditions, including derating the device's power dissipation and junction temperature. Additionally, consider using thermal interface materials, heat sinks, or forced air cooling to maintain a safe operating temperature.
Using a different input capacitor value than recommended may affect the device's stability, output voltage regulation, and transient response. It's essential to follow the recommended input capacitor value and type to ensure optimal performance and prevent oscillations or instability.
Yes, the NCP786AMNADJTBG can be used in a parallel configuration to increase output current. However, it's essential to ensure that the devices are properly synchronized, and the output currents are balanced to prevent uneven current sharing and potential instability.
A recommended EMI filtering scheme for the NCP786AMNADJTBG includes using a pi-filter (L-C-L) configuration at the input, with a common-mode choke and X-capacitors. Additionally, consider using a shielded inductor and a low-ESR output capacitor to minimize radiated emissions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP786AMNADJTBG Overview

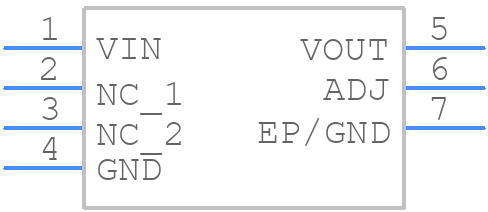

Use the download button to access the NCP786AMNADJTBG schematic symbol, PCB footprint, and 3D model.
