NCP81062MNTWG - onsemi

Description: Adaptive Anti-Cross-Conduction; Integrated bootstrap diode; Zero Cross Detection; Output disable turns off both MOSFETs; Under-Voltage Lockout; PreOVP; Bi-directional Enable; Pb-Free, Halogen/BFR Free and RoHS compliant

Download NCP81062MNTWG Model

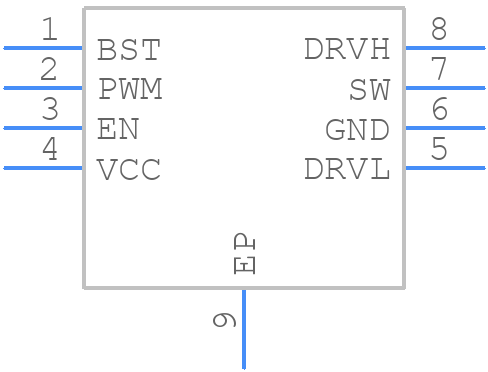

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP81062MNTWG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN8 3x3, 0.5P
click to zoom
3D Models
NCP81062MNTWG - onsemi  - 3D model - Small Outline No-lead - DFN8 3x3, 0.5P
click to zoom

NCP81062MNTWG Details

  • Manufacturer Part Number:

    NCP81062MNTWG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DFN-8

  • Package Description:

    DFN-8

  • Manufacturer Package Code:

    506BJ

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -10 °C

  • Output Characteristics:

    STANDARD

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    1.9 mA

  • Supply Voltage-Max:

    13.2 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    30 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.035 µs

  • Turn-on Time:

    0.03 µs

  • Width:

    3 mm

NCP81062MNTWG Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the device can help to dissipate heat efficiently. It's also recommended to keep the thermal path short and use a thermal pad on the bottom of the device.
  • To ensure reliable start-up and shutdown, it's recommended to use a soft-start circuit to limit the inrush current and to add a delay between the enable signal and the input voltage. Additionally, a voltage supervisor can be used to monitor the input voltage and ensure that the device is only enabled when the input voltage is within the recommended range.
  • When selecting output capacitors, consider the capacitance value, equivalent series resistance (ESR), and voltage rating. A higher capacitance value can help to reduce output voltage ripple, but may increase the start-up time. A low ESR can help to reduce energy losses, and the voltage rating should be higher than the maximum output voltage.
  • To optimize the device for low standby power consumption, consider using a low-quiescent-current (Iq) mode, disabling unnecessary features, and using a low-power mode during shutdown. Additionally, consider using a low-voltage input source and optimizing the output voltage to minimize power consumption.
  • Thermal design considerations include ensuring good airflow around the device, using a heat sink or thermal interface material, and keeping the device away from heat sources. The device's thermal pad should be connected to a solid ground plane to help dissipate heat.
