NCP81071ADR2G - onsemi

Description: Pin compatible to the most popular existing industry standard dual MOSFET drivers; Input voltage from 4.5V to 20V; Both outputs can be paralleled for higher drive current; High current drive capability (+/- 5 A); TTL/CMOS compatible inputs, independent of supply voltage; Enable function incorporated for each driver

Download NCP81071ADR2G Model
Schematic

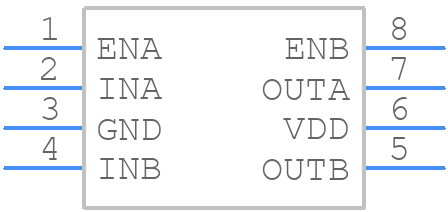

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP81071ADR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CAST 751-07
click to zoom
3D Models
NCP81071ADR2G - onsemi  - 3D model - Small Outline Packages - SOIC-8 NB CAST 751-07
click to zoom

NCP81071ADR2G Details

  • Manufacturer Part Number:

    NCP81071ADR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Package Description:

    SOIC-8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • High Side Driver:

    NO

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    140 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    5 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    20 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.029 µs

  • Turn-on Time:

    0.029 µs

  • Width:

    3.9 mm
