NCP81074AMNTBG - onsemi

Description: High Current Drive Capability; Dual Input Design

Download NCP81074AMNTBG Model

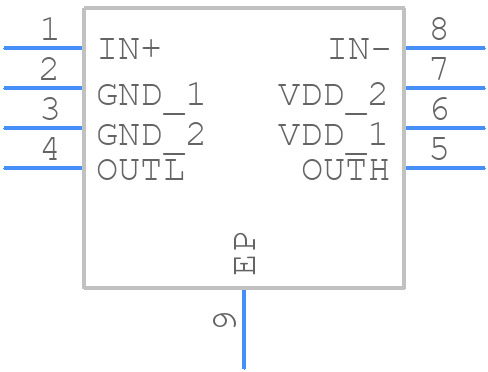

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP81074AMNTBG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN8 2X2 CASE 506AA ISSUEE
click to zoom
3D Models
NCP81074AMNTBG - onsemi  - 3D model - Small Outline No-lead - DFN8 2X2 CASE 506AA ISSUEE
click to zoom

NCP81074AMNTBG Details

  • Manufacturer Part Number:

    NCP81074AMNTBG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN-8

  • Package Description:

    DFN-8

  • Manufacturer Package Code:

    506AA

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • High Side Driver:

    NO

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-N8

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    140 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    10 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Gold/Palladium (Ni/Au/Pd)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.027 µs

  • Turn-on Time:

    0.027 µs

  • Width:

    2 mm

NCP81074AMNTBG Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the component side of the PCB clear of copper to minimize thermal resistance.
  • Ensure that the input voltage rises monotonically and does not droop during start-up. A soft-start circuit can be used to limit the inrush current.
  • The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage may damage the device.
  • No, a ceramic capacitor is not recommended for the output filter due to its high ESR. A low-ESR electrolytic or polymer capacitor is recommended instead.
  • The output voltage ripple can be calculated using the formula: ΔVout = (Iout * ESR) / (f * C), where Iout is the output current, ESR is the equivalent series resistance of the output capacitor, f is the switching frequency, and C is the output capacitance.
