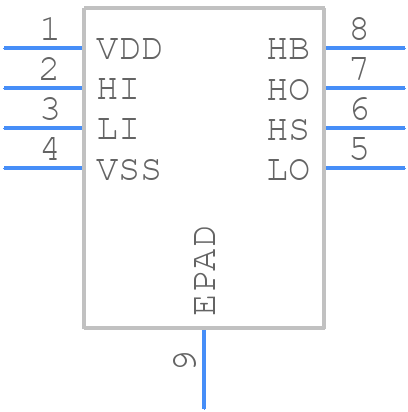

NCP81080MNTBG - onsemi

NCP81080MNTBG Details

• Manufacturer Part Number:

  NCP81080MNTBG

• Brand Name:

  onsemi

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  DFN-8

• Package Description:

  DFN-8

• Manufacturer Package Code:

  506AA

• Country Of Origin:

  Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  14 Weeks

• Manufacturer:

  onsemi

• YTEOL:

  7.75

• High Side Driver:

  YES

• Input Characteristics:

  GATED SCHMITT TRIGGER

• Interface IC Type:

  HALF BRIDGE BASED MOSFET DRIVER

• JESD-30 Code:

  S-PDSO-N8

• JESD-609 Code:

  e3

• Length:

  2 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  140 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  STANDARD

• Output Peak Current Limit-Nom:

  0.8 A

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC8,.08,20

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  1 mm

• Supply Current-Max:

  1.6 mA

• Supply Voltage-Max:

  20 V

• Supply Voltage-Min:

  5.5 V

• Supply Voltage-Nom:

  12 V

• Supply Voltage1-Max:

  200 V

• Supply Voltage1-Min:

  -4.5 V

• Supply Voltage1-Nom:

  12 V

• Surface Mount:

  YES

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Turn-off Time:

  0.03 µs

• Turn-on Time:

  0.044 µs

• Width:

  2 mm
