The recommended PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal path as short as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a heat sink if necessary, and ensure that the device is operated within its specified temperature range.
Not using the recommended input capacitors can lead to reduced performance, increased noise, and potential instability. The recommended capacitors help to filter out noise, reduce ripple, and ensure stable operation.
Yes, the NCP81274MNTXG is qualified for automotive and high-reliability applications. However, it's essential to follow the recommended design guidelines, testing, and validation procedures to ensure compliance with the specific application requirements.
To troubleshoot issues with the device, start by reviewing the design and layout, checking for proper component selection and placement, and verifying that the input and output voltages are within the specified ranges. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP81274MNTXG Overview

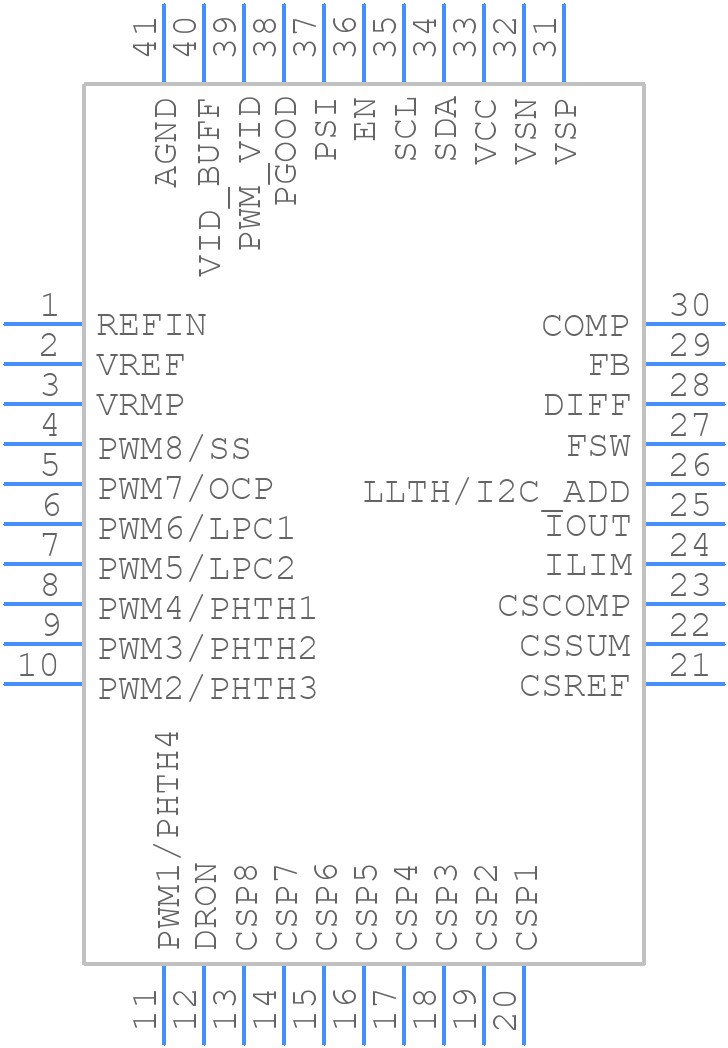

Use the download button to access the NCP81274MNTXG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP81,
or try a keyword search, such as Switching Regulator or Controllers
