NCP81296MNTXG - onsemi

Description: Enhanced 5mm by 5mm QFN; 4.5V to 18V oeprating range; Low 0.65mohms internal mosfet; Overcurrent protection against short circuit, overcurrent condition, and soft shorts; Analog IMON; Close loop operation during soft start

Download NCP81296MNTXG Model

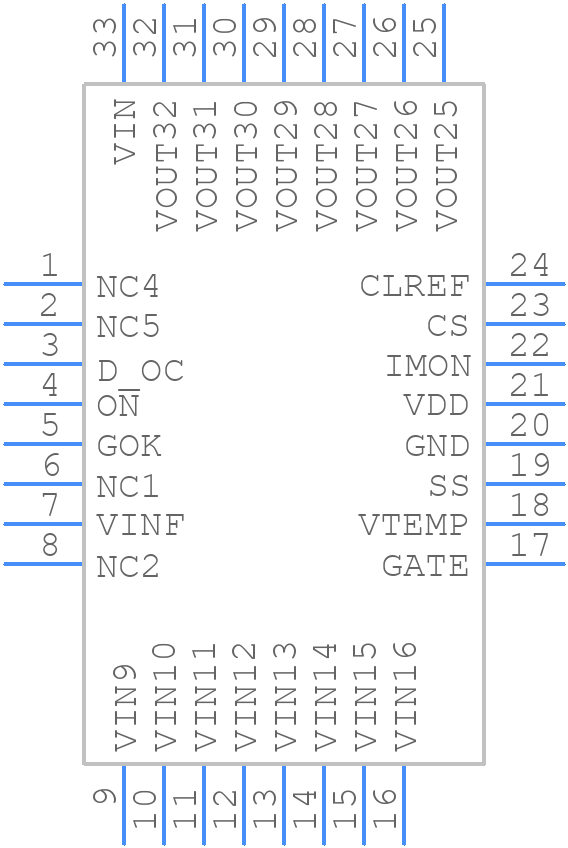

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP81296MNTXG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LQFN32 5x5, 0.5P CASE 487AA ISSUE A
click to zoom
3D Models
NCP81296MNTXG - onsemi  - 3D model - Quad Flat No-Lead - LQFN32 5x5, 0.5P CASE 487AA ISSUE A
click to zoom

NCP81296MNTXG Details

  • Manufacturer Part Number:

    NCP81296MNTXG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LQFN-32

  • Manufacturer Package Code:

    487AA

  • Country Of Origin:

    Malaysia, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2017-10-24

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    eFUSE
