Part Image

NCP81599MNTXG - onsemi

Description: I2C interface; Switching frequency from 150 kHz to 1200 kHz; Slew rate control during transition; Supports USB-PD requirements; Overvoltage and overcurrent protection; 4.5 V to 28 V operating range

Download NCP81599MNTXG Model

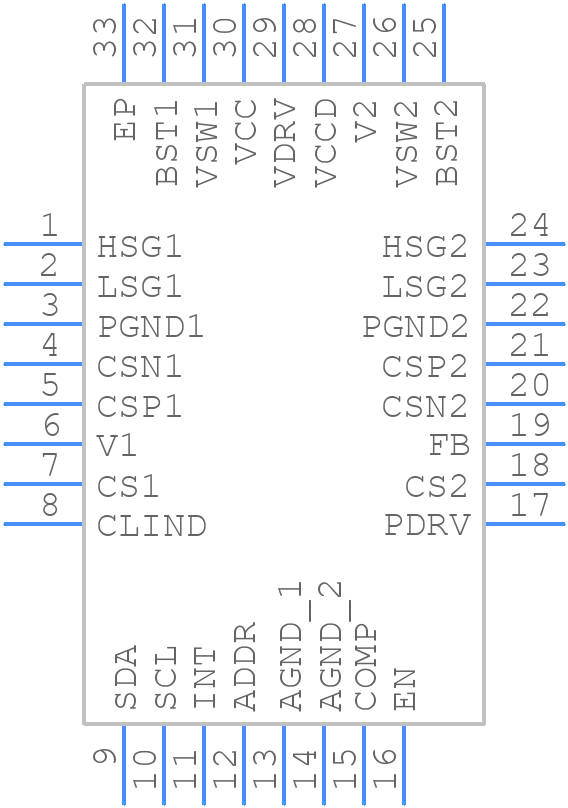

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP81599MNTXG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN32 5x5, 0.5P
click to zoom
3D Models
NCP81599MNTXG - onsemi  - 3D model - Quad Flat No-Lead - QFN32 5x5, 0.5P
click to zoom

NCP81599MNTXG Details

  • Manufacturer Part Number:

    NCP81599MNTXG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN-32

  • Package Description:

    QFN-32

  • Manufacturer Package Code:

    485CE

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    30 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +3.96V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

NCP81599MNTXG Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern under the device.
  • Use a pi-filter configuration with a common-mode choke, and ensure the output filter components are placed close to the device. Follow the recommended layout guidelines in the datasheet.
  • The device can tolerate ±10% input voltage deviation from the nominal input voltage. Exceeding this may affect performance and reliability.
  • Ensure a monotonic power-up and power-down sequence, and add a soft-start circuit to limit inrush current. Follow the recommended power-up and power-down timing in the datasheet.
  • A thermal interface material with a thermal conductivity of at least 1 W/m-K is recommended. Examples include thermal tapes, thermal greases, or graphite pads.
