NCS1-112+ - Mini-Circuits

Description: Signal Conditioning RF XFMR / SURF MT / RoHS

Download NCS1-112+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

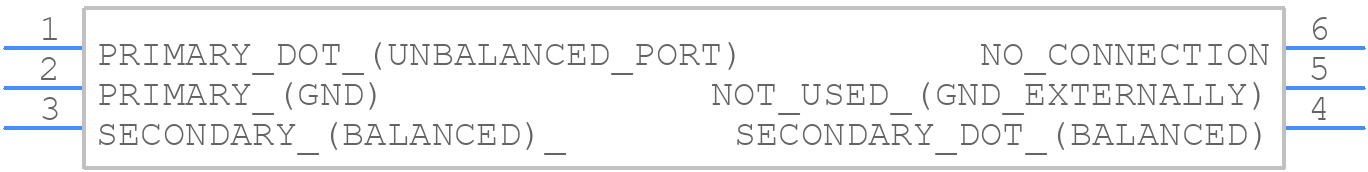

Symbol
NCS1-112+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
NCS1-112+ - Mini-Circuits PCB footprint - Other - Other - GE0805C-1AP
click to zoom
3D Models
NCS1-112+ - Mini-Circuits - 3D model - Other - GE0805C-1AP
click to zoom

NCS1-112+ Details

  • Manufacturer Part Number:

    NCS1-112+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.42

  • Cut-off Frequency-Min:

    700 MHz

  • Height:

    0.7 mm

  • Insertion Loss:

    1.2 dB

  • Length:

    2 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 7 INCH

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:1

  • Width:

    1.25 mm

NCS1-112+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a microstrip layout with 50-ohm impedance. Proper grounding and decoupling are crucial for optimal performance and noise reduction.
  • The NCS1-112+ requires a bias voltage of 5V and a bias current of 100mA. Ensure the bias voltage is well-regulated and decoupled, and the bias current is limited to prevent overheating.
  • The NCS1-112+ can handle input powers up to +10dBm without damage. However, it's recommended to operate at input powers below +5dBm for optimal performance and linearity.
  • Common issues can be caused by improper PCB layout, inadequate decoupling, or incorrect biasing. Check the PCB layout, decoupling, and biasing, and ensure the amplifier is properly terminated. If issues persist, consult the Mini-Circuits application note or contact their technical support.
  • Yes, the NCS1-112+ can be used in a push-pull configuration to improve linearity and reduce distortion. However, this requires careful design and layout to ensure proper phasing and impedance matching.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCS1-112+ Overview

Use the download button to access the NCS1-112+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCS1-, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
