NCS1-292+ - Mini-Circuits

Description: Signal Conditioning RF XFMR / SURF MT / RoHS ,,,

Download NCS1-292+ Model

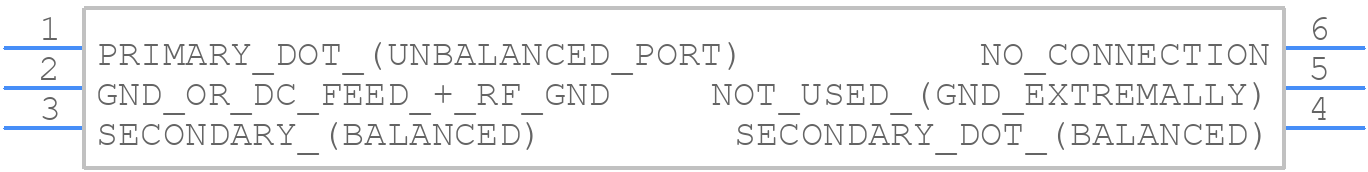

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCS1-292+ - Mini-Circuits PCB footprint - Other - Other - GE0805C-1_2021-
click to zoom
3D Models
NCS1-292+ - Mini-Circuits  - 3D model - Other - GE0805C-1_2021-
click to zoom

NCS1-292+ Details

  • Manufacturer Part Number:

    NCS1-292+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6

  • Cut-off Frequency-Max:

    2850 MHz

  • Cut-off Frequency-Min:

    1650 MHz

  • Height:

    0.84 mm

  • Insertion Loss:

    1 dB

  • JESD-609 Code:

    e3

  • Length:

    2.01 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 7 INCH

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    1.24 mm

NCS1-292+ Frequently Asked Questions (FAQs)

  • A good PCB layout and grounding scheme is crucial for optimal performance. Mini-Circuits recommends a multi-layer PCB with a solid ground plane, and to keep the signal traces as short as possible. Additionally, it's recommended to use a common ground point for the device and to avoid running signal traces near the device's ground pins.
  • To ensure proper biasing, follow the recommended biasing circuit shown in the datasheet. Make sure to use a stable voltage source and to decouple the bias voltage with a capacitor. Additionally, ensure that the bias current is within the recommended range.
  • The NCS1-292+ can handle up to 1W of input power. Exceeding this limit may cause damage to the device. It's recommended to use an attenuator or a limiter to prevent excessive power input.
  • To troubleshoot oscillations or instability, check the PCB layout and grounding scheme, ensure proper biasing, and verify that the input and output impedances are matched. Also, check for any signs of overheating or damage to the device.
  • Store the device in a dry, cool place, away from direct sunlight and moisture. Handle the device by the package, avoiding touching the pins or die. Use an anti-static wrist strap or mat when handling the device to prevent ESD damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCS1-292+ Overview

Use the download button to access the NCS1-292+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCS1-, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
