NCS1-332+ - Mini-Circuits

Description: Signal Conditioning 1:1 LTCC Transformer, 700 - 3300 MHz, 50

Download NCS1-332+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

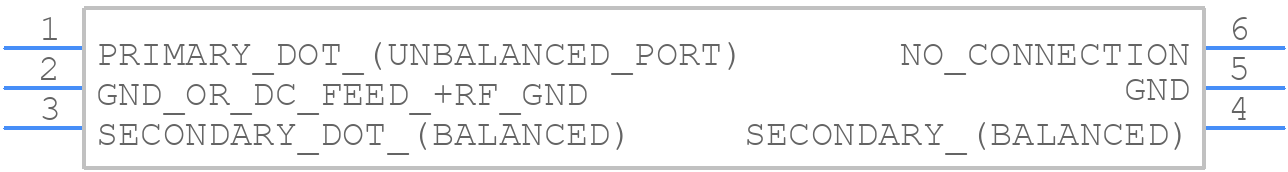

NCS1-332+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
NCS1-332+ - Mini-Circuits PCB footprint - Other - Other - NCS1-332+-3
click to zoom
3D Models
NCS1-332+ - Mini-Circuits - 3D model - Other - NCS1-332+-3
click to zoom

NCS1-332+ Details

  • Manufacturer Part Number:

    NCS1-332+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • Cut-off Frequency-Max:

    3300 MHz

  • Cut-off Frequency-Min:

    700 MHz

  • Height:

    0.84 mm

  • Insertion Loss:

    1.8 dB

  • Length:

    2 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 7 INCH

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    1.24 mm

NCS1-332+ Frequently Asked Questions (FAQs)

  • The maximum power handling of the NCS1-332+ is 1 watt. Exceeding this power limit can cause damage to the device.
  • The NCS1-332+ has a nominal impedance of 50 ohms. To impedance match, use a pi-network or a T-network with capacitors and inductors to match the impedance of your system.
  • The operating temperature range of the NCS1-332+ is -40°C to +85°C. Operating outside this range can affect the device's performance and reliability.
  • Yes, the NCS1-332+ can be used in switching applications, but it's essential to ensure that the switching frequency is within the device's bandwidth and that the power handling is not exceeded.
  • To reduce the noise figure of the NCS1-332+, use a low-noise amplifier or a pre-amplifier before the NCS1-332+, and ensure that the input signal is properly filtered and matched to the device's input impedance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCS1-332+ Overview

Use the download button to access the NCS1-332+ schematic symbol, PCB footprint, and 3D model.
